Swivel NPB Fitting Male

Swivel NPB Fitting Male

Download PDF
Product group: Flexible Steel Conduits & Fittings
Product features:
  • Cap : Nickel Plated Brass ( NPB )
  • Body : Nickel Plated Brass ( NPB )
  • Standard : EN 62444 / 50262
  • Thread Type : METRIC EN 60423 , PG DIN 40430 , NPT ANSI B1.20.1
  • Protection Class : IP 40 / IP 54
  • Operating Temperature: -50°C / +250°C
  • Color : Self-Coloured

FEATURES

  • BEST GRADE MATERIAL
  • HIGH MECHANICAL STRENGTH
  • EASY INSTALLATION

APPLICATIONS

  • MACHINE INDUSTRY
  • AUTOMATION SYSTEMS
  • CONSTRUCTION
  • MARINE , SHIPYARD

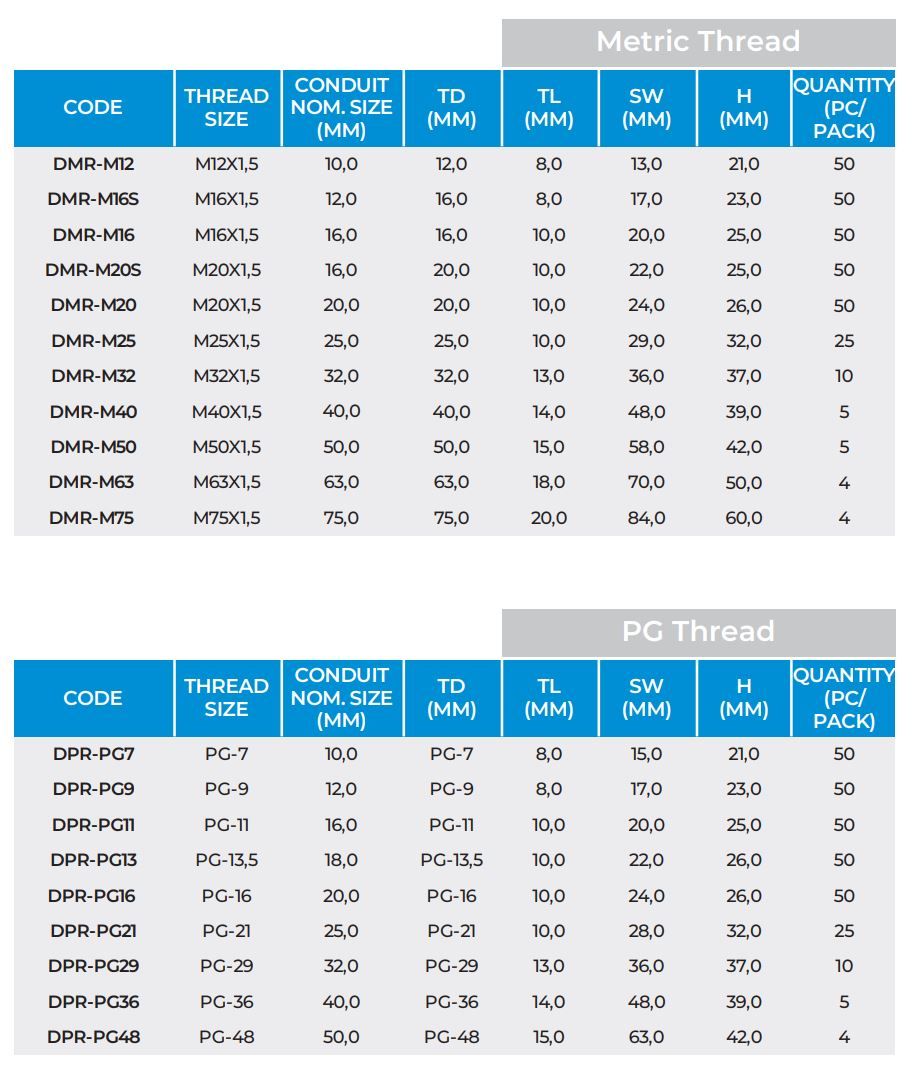

Product description:

METRİC THREAD

CODE

THREAD SIZE

CONDUIT NOM.
SIZE (MM)

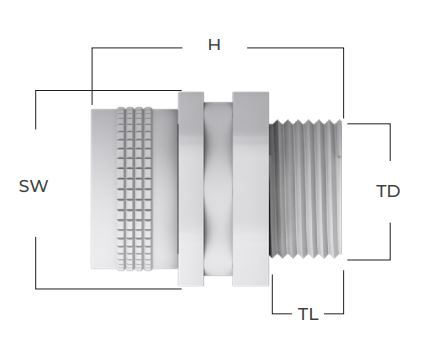

TD (MM)

TL (MM)

SW (MM)

H (MM)

QUANTITY
(PC/ PACK)

DMR-M12

M12X1,5

10,0

12,0

8,0

13,0

21,0

50

DMR-M16S

M16X1,5

12,0

16,0

8,0

17,0

23,0

50

DMR-M16

M16X1,5

16,0

16,0

10,0

20,0

25,0

50

DMR-M20S

M20X1,5

16,0

20,0

10,0

22,0

25,0

50

DMR-M20

M20X1,5

20,0

20,0

10,0

24,0

26,0

50

DMR-M25

M25X1,5

25,0

25,0

10,0

29,0

32,0

25

DMR-M32

M32X1,5

32,0

32,0

13,0

36,0

37,0

10

DMR-M40

M40X1,5

40,0

40,0

14,0

48,0

39,0

5

DMR-M50

M50X1,5

50,0

50,0

15,0

58,0

42,0

5

DMR-M63

M63X1,5

63,0

63,0

18,0

70,0

50,0

4

DMR-M75

M75X1,5

75,0

75,0

20,0

84,0

60,0

4



PG THREAD

CODE

THREAD SIZE

CONDUIT NOM.
SIZE (MM)

TD (MM)

TL (MM)

SW (MM)

H (MM)

QUANTITY
(PC/ PACK)

DPR-PG7

PG-7

10,0

PG-7

8,0

15,0

21,0

50

DPR-PG9

PG-9

12,0

PG-9

8,0

17,0

23,0

50

DPR-PG11

PG-11

16,0

PG-11

10,0

20,0

25,0

50

DPR-PG13

PG-13,5

18,0

PG-13,5

10,0

22,0

26,0

50

DPR-PG16

PG-16

20,0

PG-16

10,0

24,0

26,0

50

DPR-PG21

PG-21

25,0

PG-21

10,0

28,0

32,0

25

DPR-PG29

PG-29

32,0

PG-29

13,0

36,0

37,0

10

DPR-PG36

PG-36

40,0

PG-36

14,0

48,0

39,0

5

DPR-PG48

PG-48

50,0

PG-48

15,0

63,0

42,0

4
