Compression Fixed Connector Male Type

Compression Fixed Connector Male Type

Download PDF
Product group: Compression Fixed Connector Male Type
Product features:
  • CAP : NICKEL PLATED BRASS ( NPB )
  • BODY : NICKEL PLATED BRASS ( NPB )
  • STANDARD : EN 62444 / 50262
  • THREAD TYPE : METRIC EN 60423 , PG DIN 40430 , NPT ANSI B1.20.1
  • PROTECTION CLASS : IP 67 / IP 68
  • OPERATING TEMPERATURE: -40°C / +120°C
  • FLAMMABILITY CLASS : UL94 V2
  • COLOR : SELF-COLOURED
  • SEAL TYPE : PA6
  • O-RING : NBR

FEATURES

  • BEST GRADE MATERIAL
  • HIGH MECHANICAL STRENGTH
  • WATERPROOF
  • VIBRATION RESISTANT

APPLICATIONS

  • MACHINE BUILDINGS
  • AUTOMATION SYSTEMS
  • CONSTRUCTION
  • MARINE , SHIPYARD

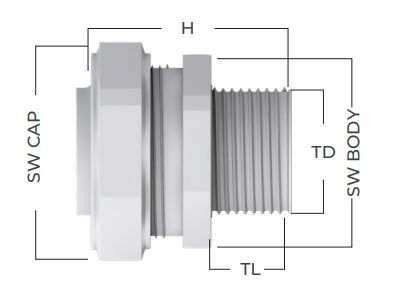

Product description:

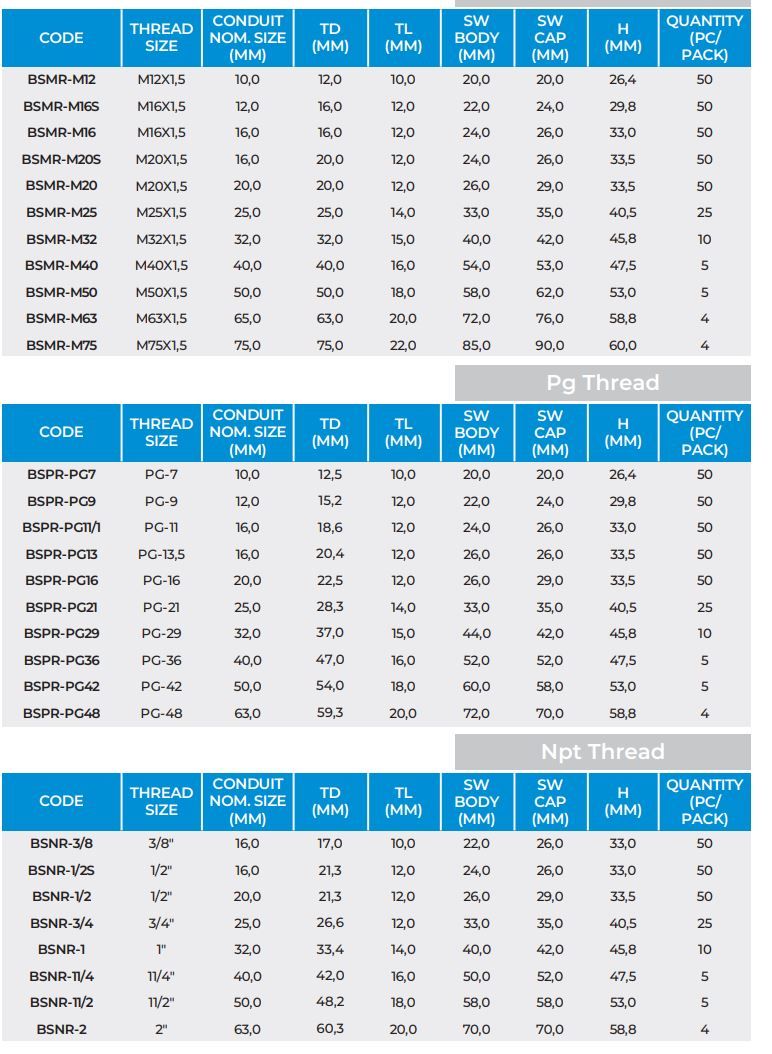

METRİC THREAD

CODE

THREAD SIZE

CONDUIT
NOM. SIZE (MM)

TD (MM)

TL (MM)

SW
BODY (MM)

SW
CAP (MM)

H (MM)

QUANTITY
(PC/ PACK)

BSMR-M12

M12X1,5

10,0

12,0

10,0

20,0

20,0

26,4

50

BSMR-M16S

M16X1,5

12,0

16,0

12,0

22,0

24,0

29,8

50

BSMR-M16

M16X1,5

16,0

16,0

12,0

24,0

26,0

33,0

50

BSMR-M20S

M20X1,5

16,0

20,0

12,0

24,0

26,0

33,5

50

BSMR-M20

M20X1,5

20,0

20,0

12,0

26,0

29,0

33,5

50

BSMR-M25

M25X1,5

25,0

25,0

14,0

33,0

35,0

40,5

25

BSMR-M32

M32X1,5

32,0

32,0

15,0

40,0

42,0

45,8

10

BSMR-M40

M40X1,5

40,0

40,0

16,0

54,0

53,0

47,5

5

BSMR-M50

M50X1,5

50,0

50,0

18,0

58,0

62,0

53,0

5

BSMR-M63

M63X1,5

65,0

63,0

20,0

72,0

76,0

58,8

4

BSMR-M75

M75X1,5

75,0

75,0

22,0

85,0

90,0

60,0

4



PG THREAD

CODE

THREAD SIZE

CONDUIT NOM.
SIZE (MM)

TD (MM)

TL (MM)

SW
BODY (MM)

SW
CAP (MM)

H (MM)

QUANTITY
(PC/ PACK)

BSPR-PG7

PG-7

10,0

12,5

10,0

20,0

20,0

26,4

50

BSPR-PG9

PG-9

12,0

15,2

12,0

22,0

24,0

29,8

50

BSPR-PG11/1

PG-11

16,0

18,6

12,0

24,0

26,0

33,0

50

BSPR-PG13

PG-13,5

16,0

20,4

12,0

26,0

26,0

33,5

50

BSPR-PG16

PG-16

20,0

22,5

12,0

26,0

29,0

33,5

50

BSPR-PG21

PG-21

25,0

28,3

14,0

33,0

35,0

40,5

25

BSPR-PG29

PG-29

32,0

37,0

15,0

44,0

42,0

45,8

10

BSPR-PG36

PG-36

40,0

47,0

16,0

52,0

52,0

47,5

5

BSPR-PG42

PG-42

50,0

54,0

18,0

60,0

58,0

53,0

5

BSPR-PG48

PG-48

63,0

59,3

20,0

72,0

70,0

58,8

4



NPT THREAD

CODE

THREAD SIZE

CONDUIT NOM.
SIZE (MM)

TD (MM)

TL (MM)

SW
BODY (MM)

SW
CAP (MM)

H (MM)

QUANTITY
(PC/ PACK)

BSNR-3/8

3/8"

16,0

17,0

10,0

22,0

26,0

33,0

50

BSNR-1/2S

1/2"

16,0

21,3

12,0

24,0

26,0

33,0

50

BSNR-1/2

1/2"

20,0

21,3

12,0

26,0

29,0

33,5

50

BSNR-3/4

3/4"

25,0

26,6

12,0

33,0

35,0

40,5

25

BSNR-1

1"

32,0

33,4

14,0

40,0

42,0

45,8

10

BSNR-11/4

11/4"

40,0

42,0

16,0

50,0

52,0

47,5

5

BSNR-11/2

11/2"

50,0

48,2

18,0

58,0

58,0

53,0

5

BSNR-2

2"

63,0

60,3

20,0

70,0

70,0

58,8

4
