FEATURES
APPLICATIONS

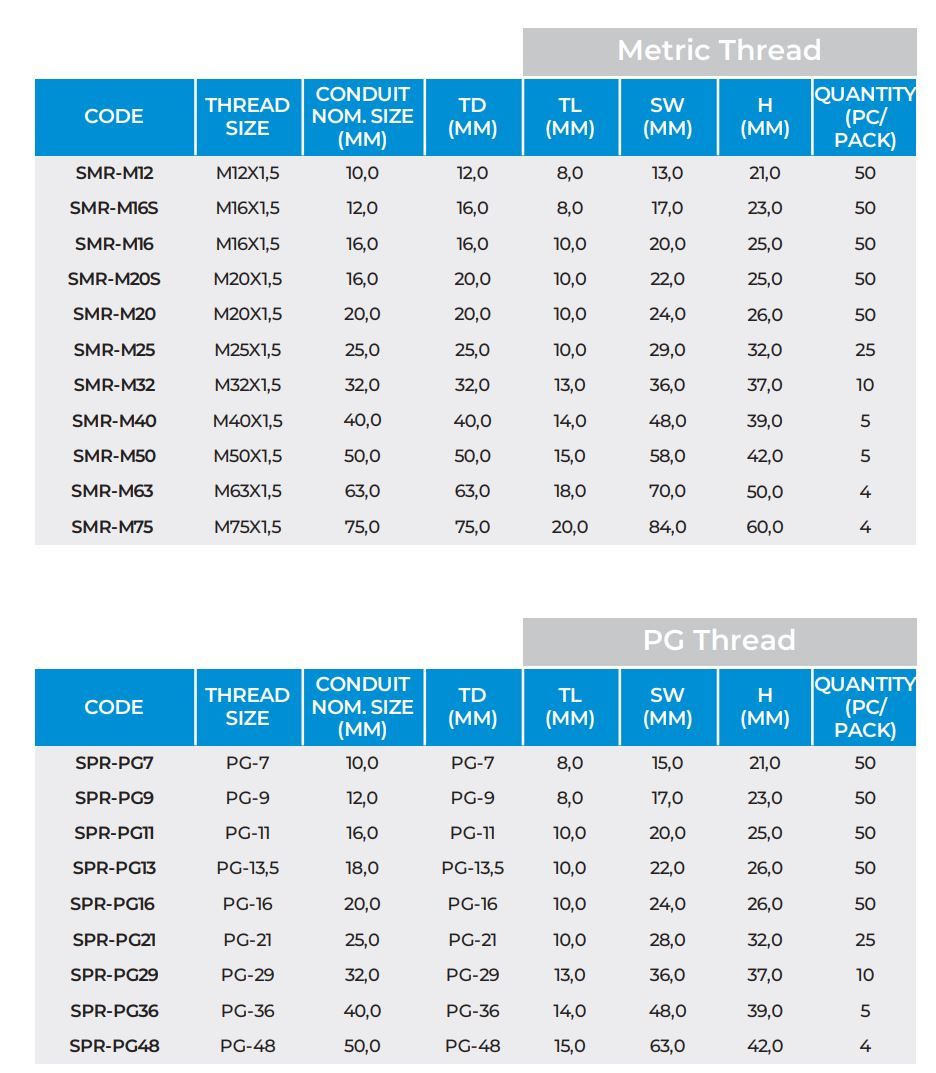

METRİC THREAD
|

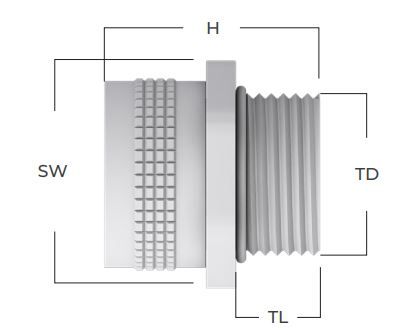

CODE |
THREAD SIZE |
CONDUIT NOM. |
TD (MM) |
TL (MM) |
SW (MM) |
H (MM) |
QUANTITY |
|
SMR-M12 |
M12X1,5 |
10,0 |
12,0 |
8,0 |
13,0 |
21,0 |
50 |
|
SMR-M16S |
M16X1,5 |
12,0 |
16,0 |
8,0 |
17,0 |
23,0 |
50 |
|
SMR-M16 |
M16X1,5 |
16,0 |
16,0 |
10,0 |
20,0 |
25,0 |
50 |
|
SMR-M20S |
M20X1,5 |
16,0 |
20,0 |
10,0 |
22,0 |
25,0 |
50 |
|
SMR-M20 |
M20X1,5 |
20,0 |
20,0 |
10,0 |
24,0 |
26,0 |
50 |
|
SMR-M25 |
M25X1,5 |
25,0 |
25,0 |
10,0 |
29,0 |
32,0 |
25 |
|
SMR-M32 |
M32X1,5 |
32,0 |
32,0 |
13,0 |
36,0 |
37,0 |
10 |
|
SMR-M40 |
M40X1,5 |
40,0 |
40,0 |
14,0 |
48,0 |
39,0 |
5 |
|
SMR-M50 |
M50X1,5 |
50,0 |
50,0 |
15,0 |
58,0 |
42,0 |
5 |
|
SMR-M63 |
M63X1,5 |
63,0 |
63,0 |
18,0 |
70,0 |
50,0 |
4 |
|
SMR-M75 |
M75X1,5 |
75,0 |
75,0 |
20,0 |
84,0 |
60,0 |
4 |
PG THREAD
|
CODE |
THREADSIZE |
CONDUIT NOM. |
TD (MM) |
TL (MM) |
SW (MM) |
H (MM) |
QUANTITY |
|
SPR-PG7 |
PG-7 |
10,0 |
PG-7 |
8,0 |
15,0 |
21,0 |
50 |
|
SPR-PG9 |
PG-9 |
12,0 |
PG-9 |
8,0 |
17,0 |
23,0 |
50 |
|
SPR-PG11 |
PG-11 |
16,0 |
PG-11 |
10,0 |
20,0 |
25,0 |
50 |
|
SPR-PG13 |
PG-13,5 |
18,0 |
PG-13,5 |
10,0 |
22,0 |
26,0 |
50 |
|
SPR-PG16 |
PG-16 |
20,0 |
PG-16 |
10,0 |
24,0 |
26,0 |
50 |
|
SPR-PG21 |
PG-21 |
25,0 |
PG-21 |
10,0 |
28,0 |
32,0 |
25 |
|
SPR-PG29 |
PG-29 |
32,0 |
PG-29 |
13,0 |
36,0 |
37,0 |
10 |
|
SPR-PG36 |
PG-36 |
40,0 |
PG-36 |
14,0 |
48,0 |
39,0 |
5 |
|
SPR-PG48 |
PG-48 |
50,0 |
PG-48 |
15,0 |
63,0 |
42,0 |
4 |
