Fixed NPB Fitting Female

Fixed NPB Fitting Female

Download PDF
Product group: Fixed NPB Fitting Female
Product features:
  • Cap : Nickel Plated Brass ( NPB )
  • Body : Nickel Plated Brass ( NPB )
  • Standard : EN 62444 / 50262
  • Thread Type : METRIC EN 60423 , PG DIN 40430 , NPT ANSI B1.20.1
  • Protection Class : IP 40 / IP 54
  • Operating Temperature: -50°C / +250°C
  • Color : Self-Coloured

FEATURES

  • BEST GRADE MATERIAL
  • HIGH MECHANICAL STRENGTH
  • EASY INSTALLATION

APPLICATIONS

  • MACHINE INDUSTRY
  • AUTOMATION SYSTEMS
  • CONSTRUCTION
  • MARINE , SHIPYARD

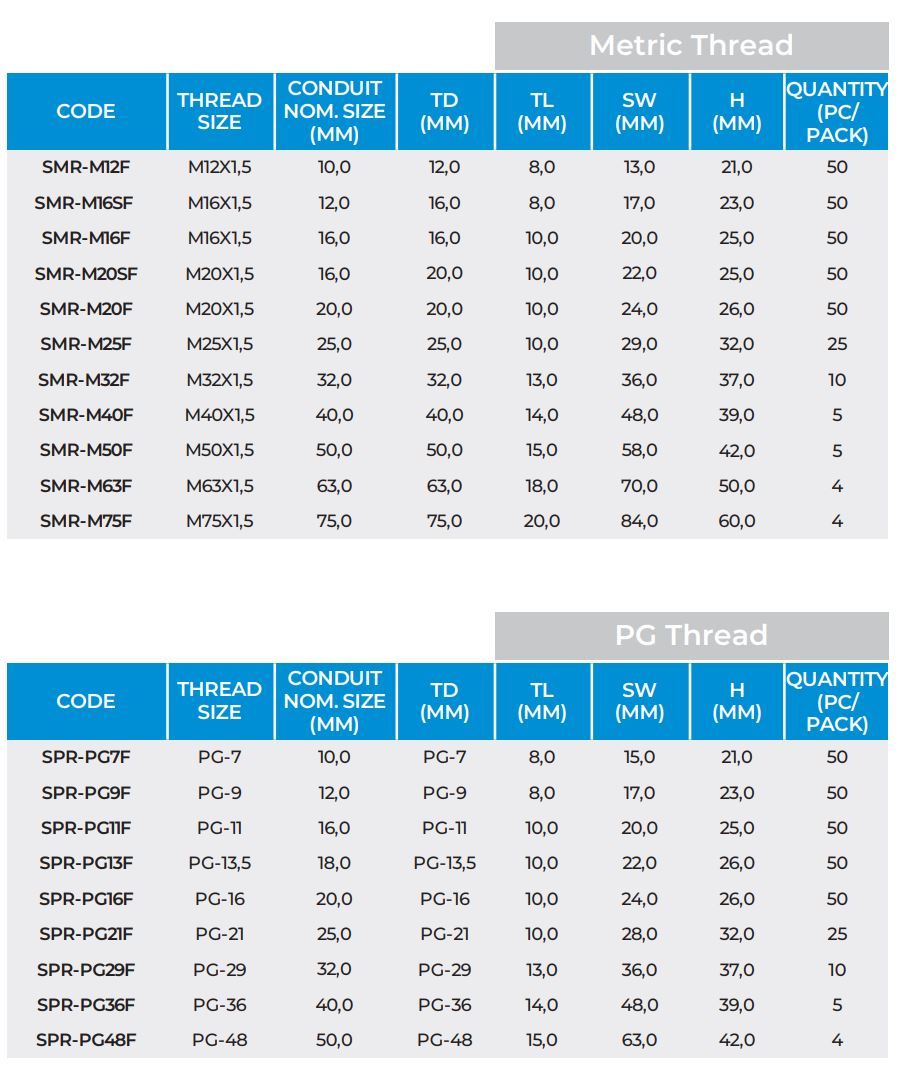

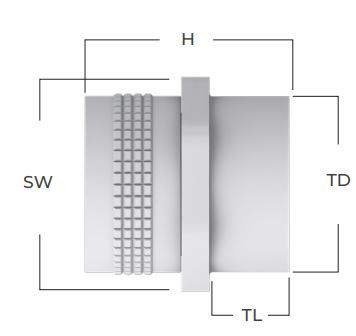

Product description:

METRİC THREAD

CODE

THREAD SIZE

CONDUIT NOM.
SIZE (MM)

TD (MM)

TL (MM)

SW (MM)

H (MM)

QUANTITY
(PC/ PACK)

SMR-M12F

M12X1,5

10,0

12,0

8,0

13,0

21,0

50

SMR-M16SF

M16X1,5

12,0

16,0

8,0

17,0

23,0

50

SMR-M16F

M16X1,5

16,0

16,0

10,0

20,0

25,0

50

SMR-M20SF

M20X1,5

16,0

20,0

10,0

22,0

25,0

50

SMR-M20F

M20X1,5

20,0

20,0

10,0

24,0

26,0

50

SMR-M25F

M25X1,5

25,0

25,0

10,0

29,0

32,0

25

SMR-M32F

M32X1,5

32,0

32,0

13,0

36,0

37,0

10

SMR-M40F

M40X1,5

40,0

40,0

14,0

48,0

39,0

5

SMR-M50F

M50X1,5

50,0

50,0

15,0

58,0

42,0

5

SMR-M63F

M63X1,5

63,0

63,0

18,0

70,0

50,0

4

SMR-M75F

M75X1,5

75,0

75,0

20,0

84,0

60,0

4



PG THREAD

CODE

THREAD SIZE

CONDUIT NOM.
SIZE (MM)

TD (MM)

TL (MM)

SW (MM)

H (MM)

QUANTITY
(PC/ PACK)

SPR-PG7F

PG-7

10,0

PG-7

8,0

15,0

21,0

50

SPR-PG9F

PG-9

12,0

PG-9

8,0

17,0

23,0

50

SPR-PG11F

PG-11

16,0

PG-11

10,0

20,0

25,0

50

SPR-PG13F

PG-13,5

18,0

PG-13,5

10,0

22,0

26,0

50

SPR-PG16F

PG-16

20,0

PG-16

10,0

24,0

26,0

50

SPR-PG21F

PG-21

25,0

PG-21

10,0

28,0

32,0

25

SPR-PG29F

PG-29

32,0

PG-29

13,0

36,0

37,0

10

SPR-PG36F

PG-36

40,0

PG-36

14,0

48,0

39,0

5

SPR-PG48F

PG-48

50,0

PG-48

15,0

63,0

42,0

4
