Compression Swivel Connector Female Type

Compression Swivel Connector Female Type

Download PDF
Product group: Compression Swivel Connector Female Type
Product features:
  • CAP : NICKEL PLATED BRASS ( NPB )
  • BODY : NICKEL PLATED BRASS ( NPB )
  • STANDARD : EN 62444 / 50262
  • THREAD TYPE : METRIC EN 60423 , PG DIN 40430 , NPT ANSI B1.20.1
  • PROTECTION CLASS : IP 67 / IP 68
  • OPERATING TEMPERATURE: -40°C / +120°C
  • FLAMMABILITY CLASS : UL94 V2
  • COLOR : SELF-COLOURED
  • SEAL TYPE : PA6

FEATURES

  • BEST GRADE MATERIAL
  • HIGH MECHANICAL STRENGTH
  • WATERPROOF
  • VIBRATION RESISTANT

APPLICATIONS

  • MACHINE BUILDINGS
  • AUTOMATION SYSTEMS
  • CONSTRUCTION
  • MARINE , SHIPYARD

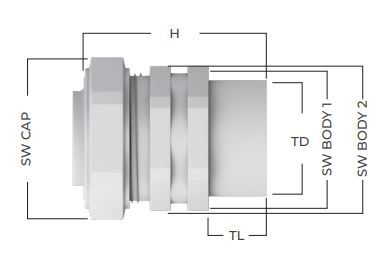

Product description:

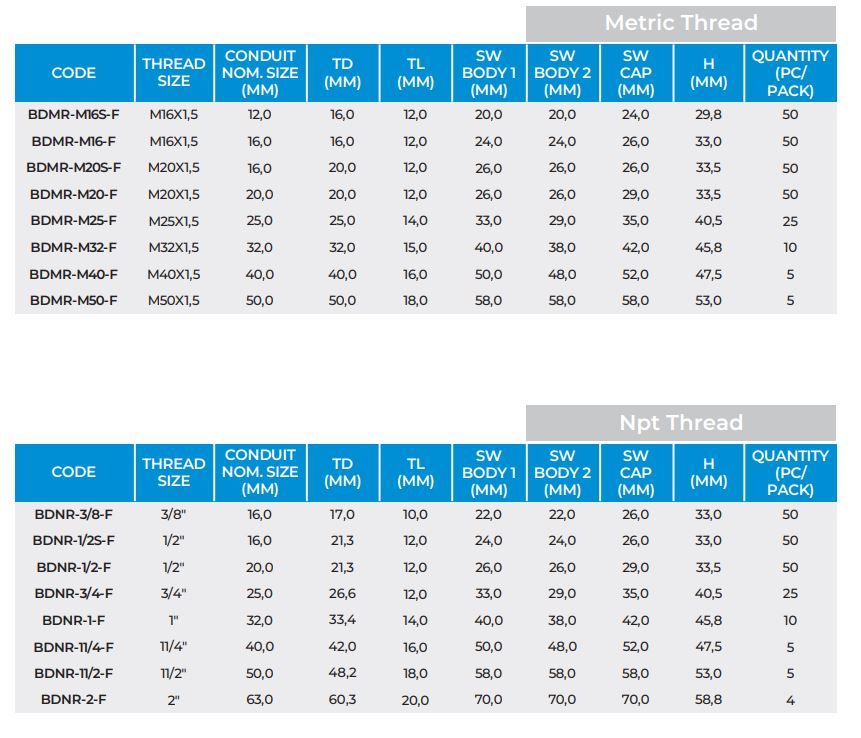

METRİC THREAD

CODE

THREAD SIZE

CONDUIT NOM.
SIZE (MM)

TD (MM)

TL (MM)

SW
BODY 1 (MM)

SW
BODY 2 (MM)

SW
CAP (MM)

H (MM)

QUANTITY
(PC/ PACK)

BDMR-M16S-F

M16X1,5

12,0

16,0

12,0

20,0

20,0

24,0

29,8

50

BDMR-M16-F

M16X1,5

16,0

16,0

12,0

24,0

24,0

26,0

33,0

50

BDMR-M20S-F

M20X1,5

16,0

20,0

12,0

26,0

26,0

26,0

33,5

50

BDMR-M20-F

M20X1,5

20,0

20,0

12,0

26,0

26,0

29,0

33,5

50

BDMR-M25-F

M25X1,5

25,0

25,0

14,0

33,0

29,0

35,0

40,5

25

BDMR-M32-F

M32X1,5

32,0

32,0

15,0

40,0

38,0

42,0

45,8

10

BDMR-M40-F

M40X1,5

40,0

40,0

16,0

50,0

48,0

52,0

47,5

5

BDMR-M50-F

M50X1,5

50,0

50,0

18,0

58,0

58,0

58,0

53,0

5



NPT THREAD

CODE

THREAD SIZE

CONDUIT NOM.
SIZE (MM)

TD (MM)

TL (MM)

SW
BODY 1 (MM)

SW
BODY 2 (MM)

SW
CAP (MM)

H (MM)

QUANTITY
(PC/ PACK)

BDNR-3/8-F

3/8"

16,0

17,0

10,0

22,0

22,0

26,0

33,0

50

BDNR-1/2S-F

1/2"

16,0

21,3

12,0

24,0

24,0

26,0

33,0

50

BDNR-1/2-F

1/2"

20,0

21,3

12,0

26,0

26,0

29,0

33,5

50

BDNR-3/4-F

3/4"

25,0

26,6

12,0

33,0

29,0

35,0

40,5

25

BDNR-1-F

1"

32,0

33,4

14,0

40,0

38,0

42,0

45,8

10

BDNR-11/4-F

11/4"

40,0

42,0

16,0

50,0

48,0

52,0

47,5

5

BDNR-11/2-F

11/2"

50,0

48,2

18,0

58,0

58,0

58,0

53,0

5

BDNR-2-F

2"

63,0

60,3

20,0

70,0

70,0

70,0

58,8

4
