Non-coated Flexible Steel Conduit

Non-coated Flexible Steel Conduit

Download PDF
Product group: Non-coated Flexible Steel Conduit
Product features:
  • MATERIAL : GALVANIZED STEEL
  • STANDARD : EN 61386 / BS 6853
  • PROTECTION CLASS : IP40
  • OPERATING TEMPERATURE: -50°C / +300°C
  • FLAMMABILITY CLASS : NON FLAMMABLE
  • COLOR : SELF-COLOURED
  • COMPRESSION STRENGTH : 1000 N
  • PULL-OFF (TENSILE) STRENGTH : 750 N
  • CERTIFICATE : CE, ROHS

FEATURES

  • BEST GRADE MATERIAL
  • HALOGEN FREE
  • SULPHUR FREE
  • PHOSPHORUS FREE
  • ABRASION RESISTANT
  • BENZINE, SOLVENT AND ACID RESISTANT
  • NON FLAMMABLE
  • SELF-EXTINGUISH
  • HIGH MECHANICAL STRENGTH
  • UV RESISTANT

APPLICATIONS

  • MACHINE INDUSTRY
  • AUTOMATION SYSTEMS
  • AUTOMOTIVE
  • CONSTRUCTION
  • SHIP BUILDING
  • RAILWAY ( EN 45545-2 HL2 HL3 )
  • EXPROOF APPLICATIONS

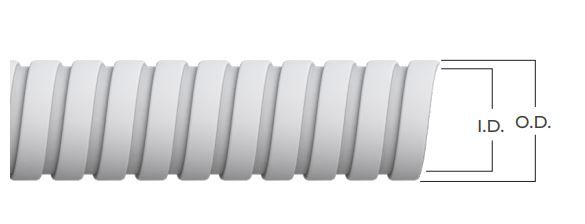

Product description:

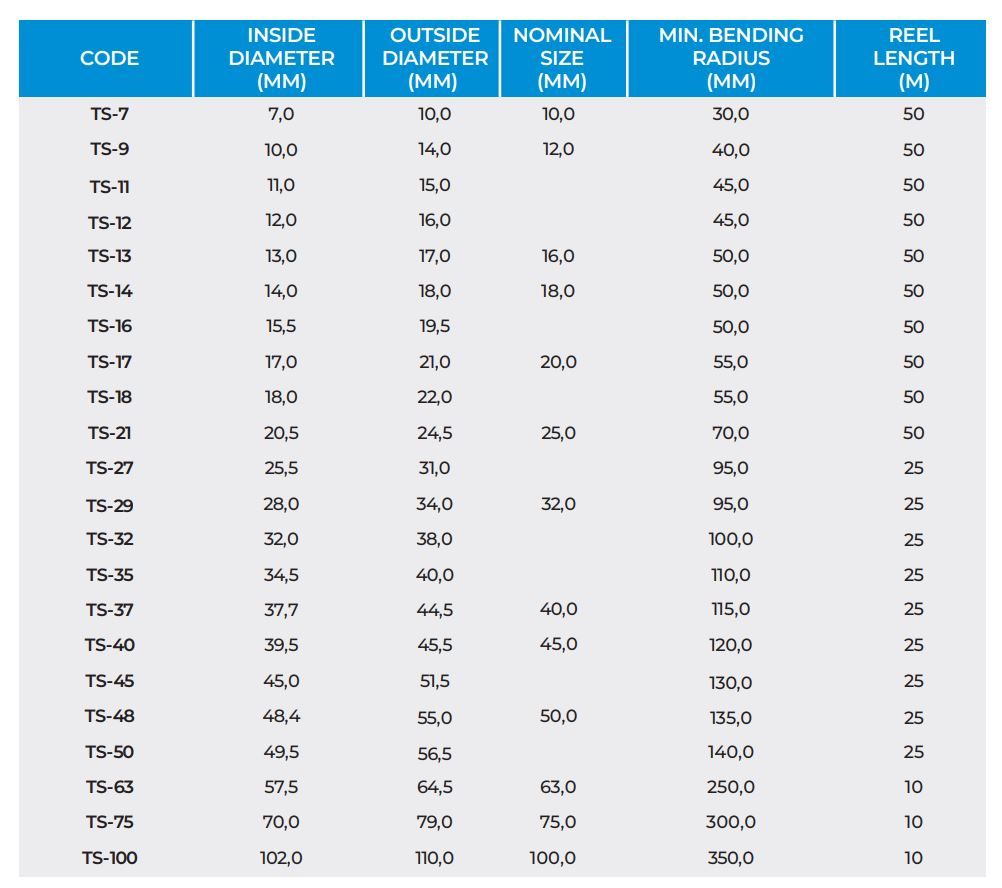

CODE

INSIDE
DIAMETER (MM)

OUTSIDE
DIAMETER (MM)

NOMINAL
SIZE (MM)

MIN. BENDING
RADIUS (MM)

REEL
LENGTH (M)

TS-7

7,0

10,0

10,0

30,0

50

TS-9

10,0

14,0

12,0

40,0

50

TS-11

11,0

15,0



45,0

50

TS-12

12,0

16,0



45,0

50

TS-13

13,0

17,0

16,0

50,0

50

TS-14

14,0

18,0

18,0

50,0

50

TS-16

15,5

19,5



50,0

50

TS-17

17,0

21,0

20,0

55,0

50

TS-18

18,0

22,0



55,0

50

TS-21

20,5

24,5

25,0

70,0

50

TS-27

25,5

31,0



95,0

25

TS-29

28,0

34,0

32,0

95,0

25

TS-32

32,0

38,0



100,0

25

TS-35

34,5

40,0



110,0

25

TS-37

37,7

44,5

40,0

115,0

25

TS-40

39,5

45,5

45,0

120,0

25

TS-45

45,0

51,5



130,0

25

TS-48

48,4

55,0

50,0

135,0

25

TS-50

49,5

56,5



140,0

25

TS-63

57,5

64,5

63,0

250,0

10

TS-75

70,0

79,0

75,0

300,0

10

TS-100

102,0

110,0

100,0

350,0

10
