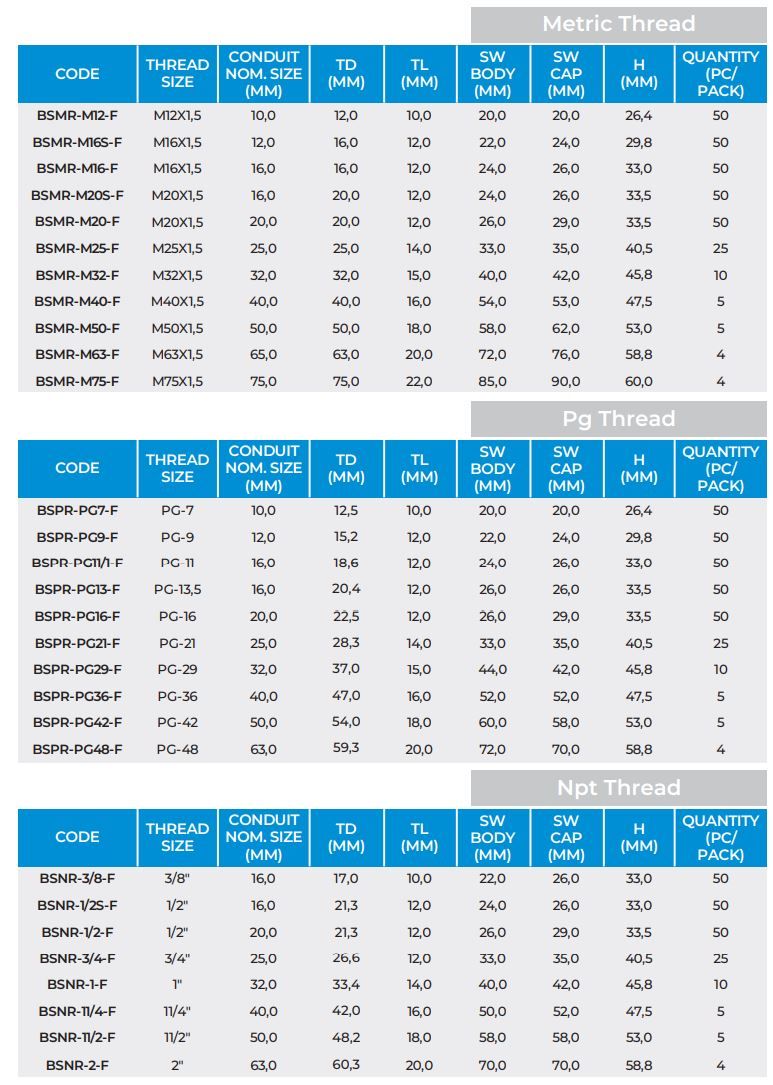

METRİC THREAD
|
CODE |
THREAD SIZE |
CONDUIT NOM. |
TD (MM) |
TL (MM) |
SW |
SW |
H (MM) |
QUANTITY |
|
BSMR-M12-F |
M12X1,5 |
10,0 |
12,0 |
10,0 |
20,0 |
20,0 |
26,4 |
50 |
|
BSMR-M16S-F |
M16X1,5 |
12,0 |
16,0 |
12,0 |
22,0 |
24,0 |
29,8 |
50 |
|
BSMR-M16-F |
M16X1,5 |
16,0 |
16,0 |
12,0 |
24,0 |
26,0 |
33,0 |
50 |
|
BSMR-M20S-F |
M20X1,5 |
16,0 |
20,0 |
12,0 |
24,0 |
26,0 |
33,5 |
50 |
|
BSMR-M20-F |
M20X1,5 |
20,0 |
20,0 |
12,0 |
26,0 |
29,0 |
33,5 |
50 |
|
BSMR-M25-F |
M25X1,5 |
25,0 |
25,0 |
14,0 |
33,0 |
35,0 |
40,5 |
25 |
|
BSMR-M32-F |
M32X1,5 |
32,0 |
32,0 |
15,0 |
40,0 |
42,0 |
45,8 |
10 |
|
BSMR-M40-F |
M40X1,5 |
40,0 |
40,0 |
16,0 |
54,0 |
53,0 |
47,5 |
5 |
|
BSMR-M50-F |
M50X1,5 |
50,0 |
50,0 |
18,0 |
58,0 |
62,0 |
53,0 |
5 |
|
BSMR-M63-F |
M63X1,5 |
65,0 |
63,0 |
20,0 |
72,0 |
76,0 |
58,8 |
4 |
|
BSMR-M75-F |
M75X1,5 |
75,0 |
75,0 |
22,0 |
85,0 |
90,0 |
60,0 |
4 |
PG THREAD
|
CODE |
THREAD SIZE |
CONDUIT NOM. |
TD (MM) |
TL (MM) |
SW |
SW |
H (MM) |
QUANTITY |
|
BSNR-3/8-F |
3/8" |
16,0 |
17,0 |
10,0 |
22,0 |
26,0 |
33,0 |
50 |
|
BSNR-1/2S-F |
1/2" |
16,0 |
21,3 |
12,0 |
24,0 |
26,0 |
33,0 |
50 |
|
BSNR-1/2-F |
1/2" |
20,0 |
21,3 |
12,0 |
26,0 |
29,0 |
33,5 |
50 |
|
BSNR-3/4-F |
3/4" |
25,0 |
26,6 |
12,0 |
33,0 |
35,0 |
40,5 |
25 |
|
BSNR-1-F |
1" |
32,0 |
33,4 |
14,0 |
40,0 |
42,0 |
45,8 |
10 |
|
BSNR-11/4-F |
11/4" |
40,0 |
42,0 |
16,0 |
50,0 |
52,0 |
47,5 |
5 |
|
BSNR-11/2-F |
11/2" |
50,0 |
48,2 |
18,0 |
58,0 |
58,0 |
53,0 |
5 |
|
BSNR-2-F |
2" |
63,0 |
60,3 |
20,0 |
70,0 |
70,0 |
58,8 |
4 |
NPT THREAD
|
CODE |
THREAD SIZE |
CONDUIT NOM. |
TD (MM) |
TL (MM) |
SW |
SW |
H (MM) |
QUANTITY |
|
BSPR-PG7-F |
PG-7 |
10,0 |
12,5 |
10,0 |
20,0 |
20,0 |
26,4 |
50 |
|
BSPR-PG9-F |
PG-9 |
12,0 |
15,2 |
12,0 |
22,0 |
24,0 |
29,8 |
50 |
|
BSPR-PG11/1-F |
PG-11 |
16,0 |
18,6 |
12,0 |
24,0 |
26,0 |
33,0 |
50 |
|
BSPR-PG13-F |
PG-13,5 |
16,0 |
20,4 |
12,0 |
26,0 |
26,0 |
33,5 |
50 |
|
BSPR-PG16-F |
PG-16 |
20,0 |
22,5 |
12,0 |
26,0 |
29,0 |
33,5 |
50 |
|
BSPR-PG21-F |
PG-21 |
25,0 |
28,3 |
14,0 |
33,0 |
35,0 |
40,5 |
25 |
|
BSPR-PG29-F |
PG-29 |
32,0 |
37,0 |
15,0 |
44,0 |
42,0 |
45,8 |
10 |
|
BSPR-PG36-F |
PG-36 |
40,0 |
47,0 |
16,0 |
52,0 |
52,0 |
47,5 |
5 |
|
BSPR-PG42-F |
PG-42 |
50,0 |
54,0 |
18,0 |
60,0 |
58,0 |
53,0 |
5 |
|
BSPR-PG48-F |
PG-48 |
63,0 |
59,3 |
20,0 |
72,0 |
70,0 |
58,8 |
4 |
