Polyamide Cable Gland With Closing Seal

Polyamide Cable Gland With Closing Seal

Polyamide Cable Gland With Closing Seal

Polyamide Cable Gland With Closing Seal

Product group: Polyamide Cable Gland With Closing Sea

Product features:

MATERIAL : POLYAMIDE 6
STANDARD : EN 62444
THREAD TYPE : METRIC EN 60423, PG DIN 40430
PROTECTION CLASS : IP 68 / 5 BAR
OPERATING TEMPERATURE : -30°C /+100°C,-40°C /+150°C (SHORT TERM)
FLAMMABILITY CLASS : UL94V2
COLOR : GREY (RAL 7001), BLACK (RAL 9005), LIGHT GREY (RAL 7035)
SEAL : TPV, (CHLOROPRENE IS OPTIONAL)
CLOSING SEAL : TPV
CERTIFICATE : CE, ROHS

FEATURES

GOOD CLAMBING RANGE
HALOGEN FREE
SULPHUR FREE PHOSPHORUS FREE
UL 94 V2 FLAME RETARDANCY HIGH MECHANICAL STRENGTH
EASY INSTALLATION HIGH STRAIN RELIEF
BEST GRADE MATERIAL

APPLICATIONS

MACHINE BUILDINGS
AUTOMATION SYSTEMS AUTOMOTIVE ( WIRE HARNESS )
SOLAR SYSTEMS CONSTRUCTION
CCTV
MARINE , SHIPYARD ROBOT INDUSTRY

Product description:

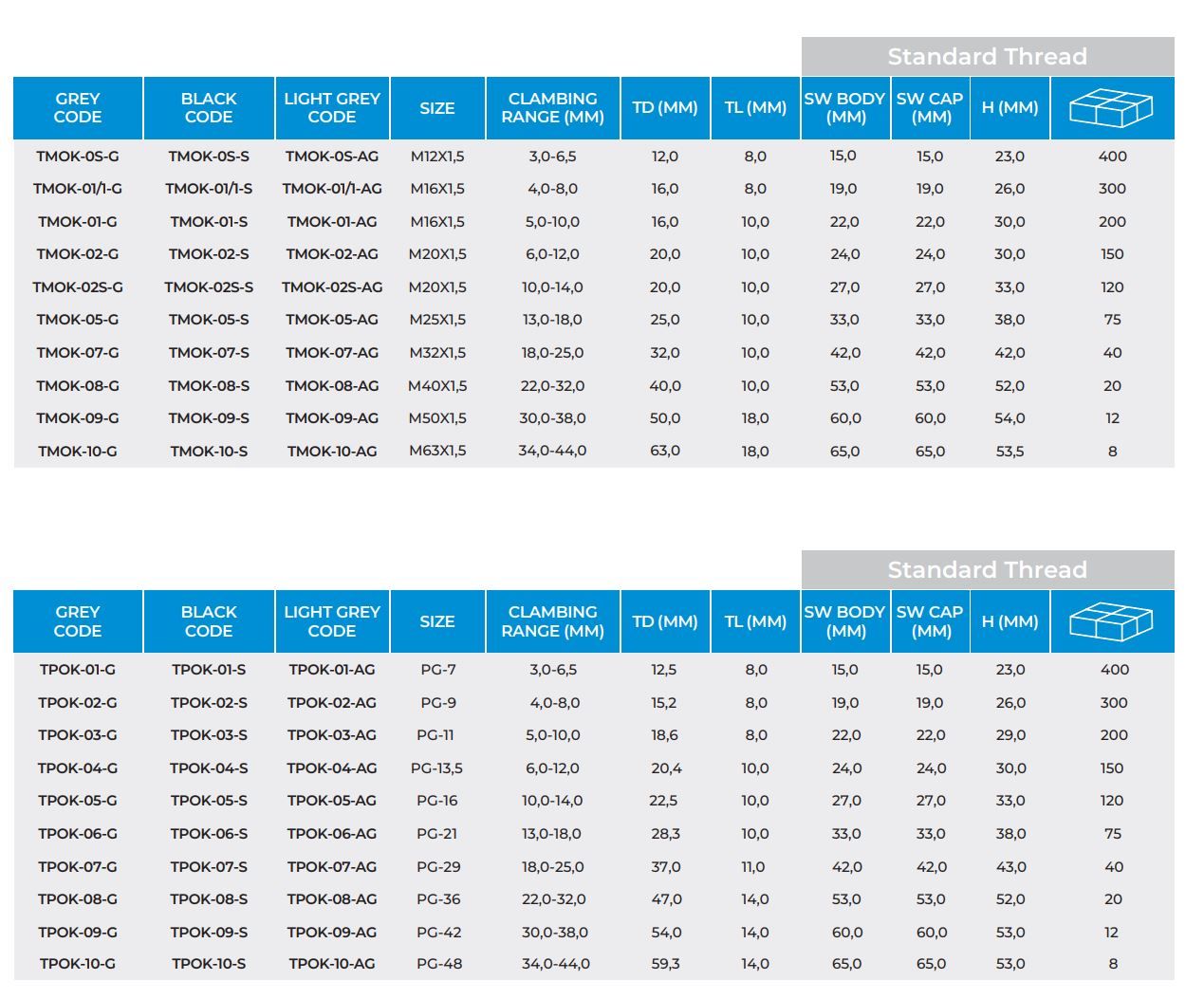

METRİC THREAD

GREY CODE	BLACK CODE	LIGHT GREY CODE	SIZE	CLAMBING RANGE (MM)	TD (MM)	TL (MM)	SW BODY (MM)	SW CAP (MM)	H (MM)
TMOK-0S-G	TMOK-0S-S	TMOK-0S-AG	M12X1,5	3,0-6,5	12,0	8,0	15,0	15,0	23,0	400
TMOK-01/1-G	TMOK-01/1-S	TMOK-01/1-AG	M16X1,5	4,0-8,0	16,0	8,0	19,0	19,0	26,0	300
TMOK-01-G	TMOK-01-S	TMOK-01-AG	M16X1,5	5,0-10,0	16,0	10,0	22,0	22,0	30,0	200
TMOK-02-G	TMOK-02-S	TMOK-02-AG	M20X1,5	6,0-12,0	20,0	10,0	24,0	24,0	30,0	150
TMOK-02S-G	TMOK-02S-S	TMOK-02S-AG	M20X1,5	10,0-14,0	20,0	10,0	27,0	27,0	33,0	120
TMOK-05-G	TMOK-05-S	TMOK-05-AG	M25X1,5	13,0-18,0	25,0	10,0	33,0	33,0	38,0	75
TMOK-07-G	TMOK-07-S	TMOK-07-AG	M32X1,5	18,0-25,0	32,0	10,0	42,0	42,0	42,0	40
TMOK-08-G	TMOK-08-S	TMOK-08-AG	M40X1,5	22,0-32,0	40,0	10,0	53,0	53,0	52,0	20
TMOK-09-G	TMOK-09-S	TMOK-09-AG	M50X1,5	30,0-38,0	50,0	18,0	60,0	60,0	54,0	12
TMOK-10-G	TMOK-10-S	TMOK-10-AG	M63X1,5	34,0-44,0	63,0	18,0	65,0	65,0	53,5	8

PG THREAD

GREY CODE	BLACK CODE	LIGHT GREY CODE	SIZE	CLAMBING RANGE (MM)	TD (MM)	TL (MM)	SW BODY (MM)	SW CAP (MM)	H (MM)
TPOK-01-G	TPOK-01-S	TPOK-01-AG	PG-7	3,0-6,5	12,5	8,0	15,0	15,0	23,0	400
TPOK-02-G	TPOK-02-S	TPOK-02-AG	PG-9	4,0-8,0	15,2	8,0	19,0	19,0	26,0	300
TPOK-03-G	TPOK-03-S	TPOK-03-AG	PG-11	5,0-10,0	18,6	8,0	22,0	22,0	29,0	200
TPOK-04-G	TPOK-04-S	TPOK-04-AG	PG-13,5	6,0-12,0	20,4	10,0	24,0	24,0	30,0	150
TPOK-05-G	TPOK-05-S	TPOK-05-AG	PG-16	10,0-14,0	22,5	10,0	27,0	27,0	33,0	120
TPOK-06-G	TPOK-06-S	TPOK-06-AG	PG-21	13,0-18,0	28,3	10,0	33,0	33,0	38,0	75
TPOK-07-G	TPOK-07-S	TPOK-07-AG	PG-29	18,0-25,0	37,0	11,0	42,0	42,0	43,0	40
TPOK-08-G	TPOK-08-S	TPOK-08-AG	PG-36	22,0-32,0	47,0	14,0	53,0	53,0	52,0	20
TPOK-09-G	TPOK-09-S	TPOK-09-AG	PG-42	30,0-38,0	54,0	14,0	60,0	60,0	53,0	12
TPOK-10-G	TPOK-10-S	TPOK-10-AG	PG-48	34,0-44,0	59,3	14,0	65,0	65,0	53,0	8
