Product group: Stainless Steel Standart Cable Gland PG Type

Product features:

MATERIAL : STAINLESS STEEL AISI 303 ( AISI 316L IS OPTIONAL )
STANDARD : EN 62444
THREAD TYPE : PG DIN 40430
PROTECTION CLASS : IP 68 / 5 BAR
OPERATING TEMPERATURE : -30°C /+100°C,-40°C /+150°C (SHORT TERM)
FLAMMABILITY CLASS : UL94V2
COLOR : SELF - COLOURED
SEAL : TPV, (CHLOROPRENE IS OPTIONAL)
INSERT : POLYAMIDE 6
O-RING : NBR
CERTIFICATE : CE, ROHS

FEATURES

GOOD CLAMBING RANGE
HALOGEN FREE
SULPHUR FREE PHOSPHORUS FREE
UL 94 V2 FLAME RETARDANCY
HIGH MECHANICAL STRENGTH
NO CORROSION
EASY INSTALLATION
HIGH STRAIN RELIEF
BEST GRADE MATERIAL
ACID RESISTANT
GOOD CHEMICAL RESISTANT

APPLICATIONS

MACHINE BUILDINGS
AUTOMATION SYSTEMS FOOD INDUSTRY
CHEMICAL INDUSTRY
LIGHTING
TUNNEL LIGHTING

Product description:

STANDARD THREAD

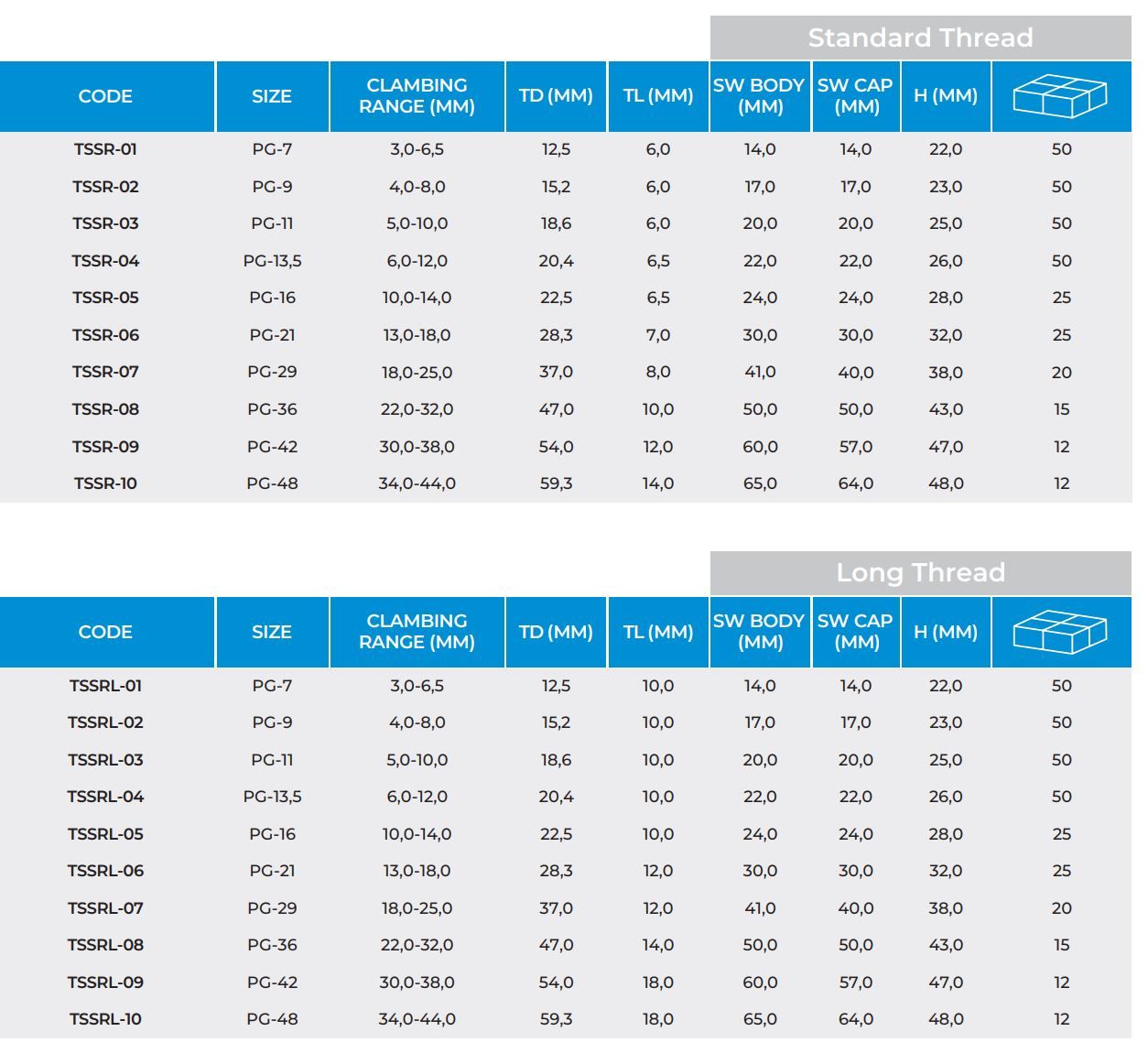

CODE	SIZE	CLAMBING RANGE (MM)	TD (MM)	TL (MM)	SW BODY (MM)	SW CAP (MM)	H (MM)
TSSR-01	PG-7	3,0-6,5	12,5	6,0	14,0	14,0	22,0	50
TSSR-02	PG-9	4,0-8,0	15,2	6,0	17,0	17,0	23,0	50
TSSR-03	PG-11	5,0-10,0	18,6	6,0	20,0	20,0	25,0	50
TSSR-04	PG-13,5	6,0-12,0	20,4	6,5	22,0	22,0	26,0	50
TSSR-05	PG-16	10,0-14,0	22,5	6,5	24,0	24,0	28,0	25
TSSR-06	PG-21	13,0-18,0	28,3	7,0	30,0	30,0	32,0	25
TSSR-07	PG-29	18,0-25,0	37,0	8,0	41,0	40,0	38,0	20
TSSR-08	PG-36	22,0-32,0	47,0	10,0	50,0	50,0	43,0	15
TSSR-09	PG-42	30,0-38,0	54,0	12,0	60,0	57,0	47,0	12
TSSR-10	PG-48	34,0-44,0	59,3	14,0	65,0	64,0	48,0	12

LONG THREAD

CODE	SIZE	CLAMBING RANGE (MM)	TD (MM)	TL (MM)	SW BODY (MM)	SW CAP (MM)	H (MM)
TSSRL-01	PG-7	3,0-6,5	12,5	10,0	14,0	14,0	22,0	50
TSSRL-02	PG-9	4,0-8,0	15,2	10,0	17,0	17,0	23,0	50
TSSRL-03	PG-11	5,0-10,0	18,6	10,0	20,0	20,0	25,0	50
TSSRL-04	PG-13,5	6,0-12,0	20,4	10,0	22,0	22,0	26,0	50
TSSRL-05	PG-16	10,0-14,0	22,5	10,0	24,0	24,0	28,0	25
TSSRL-06	PG-21	13,0-18,0	28,3	12,0	30,0	30,0	32,0	25
TSSRL-07	PG-29	18,0-25,0	37,0	12,0	41,0	40,0	38,0	20
TSSRL-08	PG-36	22,0-32,0	47,0	14,0	50,0	50,0	43,0	15
TSSRL-09	PG-42	30,0-38,0	54,0	18,0	60,0	57,0	47,0	12
TSSRL-10	PG-48	34,0-44,0	59,3	18,0	65,0	64,0	48,0	12
