Polyamide Standard Cable Gland PG Type

Polyamide Standard Cable Gland PG Type

Polyamide Standard Cable Gland PG Type

Polyamide Standard Cable Gland PG Type

Product group: Polyamide Standard Cable Gland PG Type

Product features:

MATERIAL : POLYAMIDE 6
STANDARD : EN 62444
THREAD TYPE : PG DIN 40430
PROTECTION CLASS : IP 68 / 5 BAR
OPERATING TEMPERATURE : -30°C /+100°C,-40°C /+150°C (SHORT TERM)
FLAMMABILITY CLASS : UL94V2
COLOR : GREY (RAL 7001), BLACK (RAL 9005), LIGHT GREY (RAL 7035)
SEAL : TPV, (CHLOROPRENE IS OPTIONAL)
CERTIFICATE : CE, ROHS

FEATURES

GOOD CLAMBING RANGE
HALOGEN FREE
SULPHUR FREE PHOSPHORUS FREE
UL 94 V2 FLAME RETARDANCY HIGH MECHANICAL STRENGTH
EASY INSTALLATION HIGH STRAIN RELIEF
BEST GRADE MATERIAL

APPLICATIONS

MACHINE BUILDINGS
AUTOMATION SYSTEMS AUTOMOTIVE ( WIRE HARNESS )
SOLAR SYSTEMS CONSTRUCTION
CCTV
MARINE , SHIPYARD ROBOT INDUSTRY

Product description:

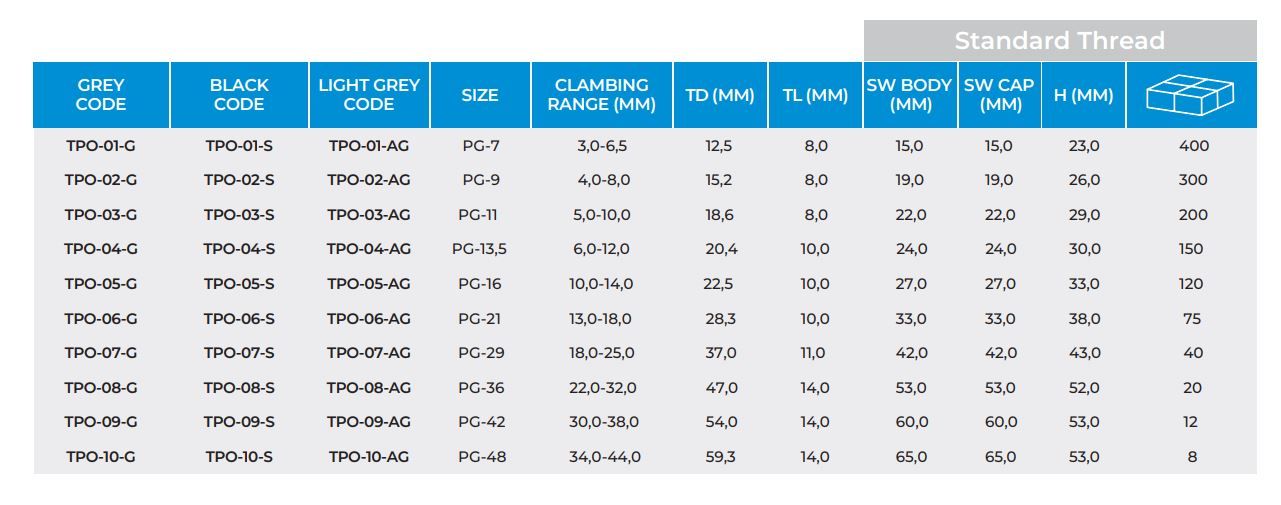

STANDARD THREAD

GREY CODE	BLACK CODE	LIGHT GREY CODE	SIZE	CLAMBING RANGE (MM)	TD (MM)	TL (MM)	SW BODY (MM)	SW CAP (MM)	H (MM)
TPO-01-G	TPO-01-S	TPO-01-AG	PG-7	3,0-6,5	12,5	8,0	15,0	15,0	23,0	400
TPO-02-G	TPO-02-S	TPO-02-AG	PG-9	4,0-8,0	15,2	8,0	19,0	19,0	26,0	300
TPO-03-G	TPO-03-S	TPO-03-AG	PG-11	5,0-10,0	18,6	8,0	22,0	22,0	29,0	200
TPO-04-G	TPO-04-S	TPO-04-AG	PG-13,5	6,0-12,0	20,4	10,0	24,0	24,0	30,0	150
TPO-05-G	TPO-05-S	TPO-05-AG	PG-16	10,0-14,0	22,5	10,0	27,0	27,0	33,0	120
TPO-06-G	TPO-06-S	TPO-06-AG	PG-21	13,0-18,0	28,3	10,0	33,0	33,0	38,0	75
TPO-07-G	TPO-07-S	TPO-07-AG	PG-29	18,0-25,0	37,0	11,0	42,0	42,0	43,0	40
TPO-08-G	TPO-08-S	TPO-08-AG	PG-36	22,0-32,0	47,0	14,0	53,0	53,0	52,0	20
TPO-09-G	TPO-09-S	TPO-09-AG	PG-42	30,0-38,0	54,0	14,0	60,0	60,0	53,0	12
TPO-10-G	TPO-10-S	TPO-10-AG	PG-48	34,0-44,0	59,3	14,0	65,0	65,0	53,0	8
