MATERIAL : POLYAMIDE 6 GF30
STANDARD : EN 62444
THREAD TYPE : METRIC EN 60423 , PG DIN 40430
PROTECTION CLASS : IP 68 / 5 BAR
OPERATING TEMPERATURE : -30°C /+100°C
COLOR : GREY (RAL 7001), BLACK (RAL 9005), LIGHT GREY (RAL 7035)
O-RING : NBR
CERTIFICATE : CE, ROHS
FEATURES
APPLICATIONS
WHERE TO CONNECT GLANDS

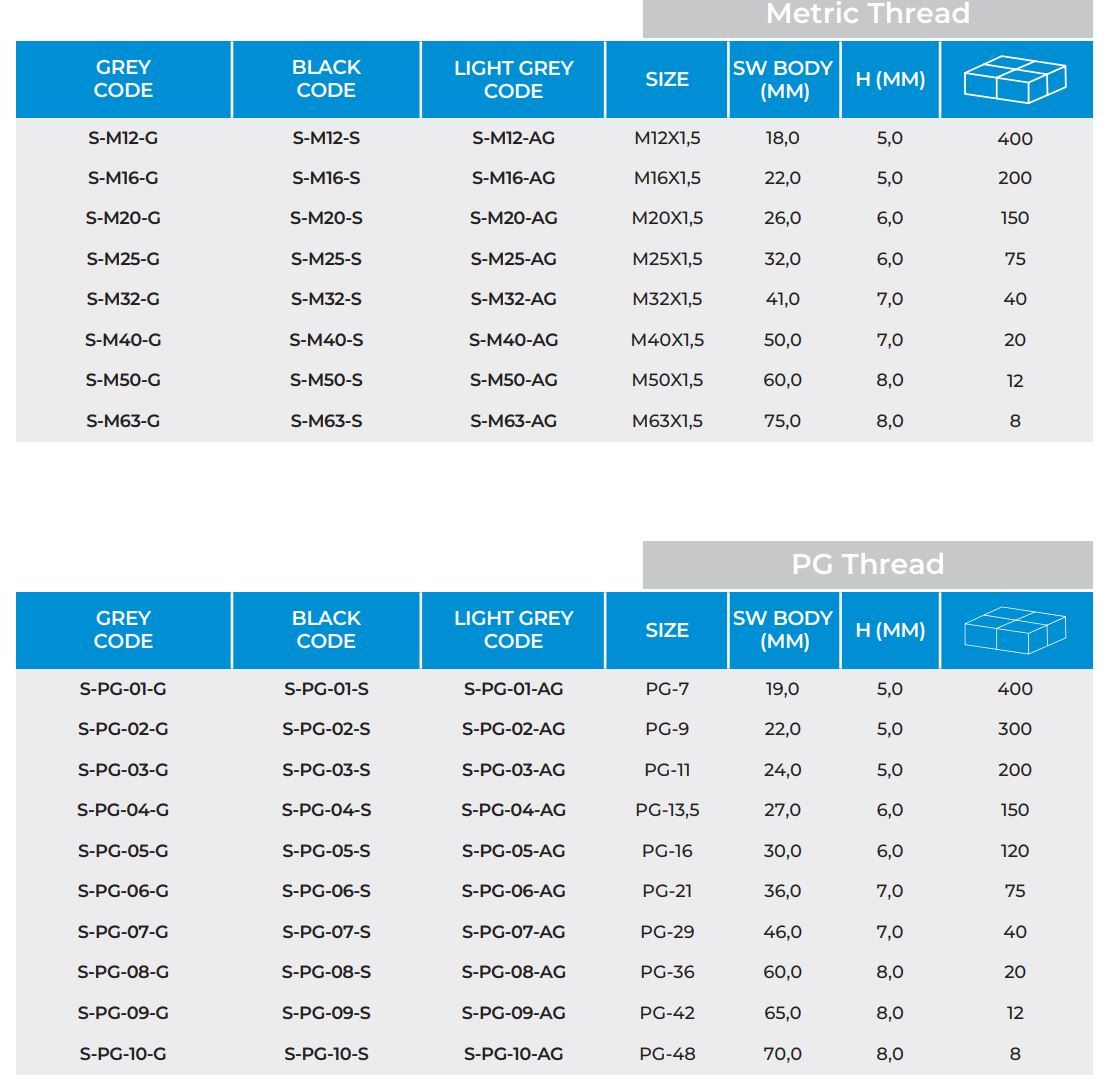

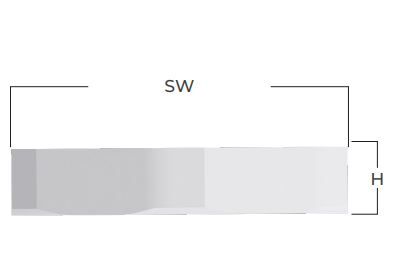

METRİC THREAD
|
GREY CODE |
BLACK CODE |
LIGHT |
SIZE |
SW BODY (MM) |
H (MM) |
|
|
S/M12-G |
S/M12-S |
S/M12-AG |
M12X1,5 |
18,0 |
5,0 |
400 |
|
S/M16-G |
S/M16-S |
S/M16-AG |
M16X1,5 |
22,0 |
5,0 |
200 |
|
S/M20-G |
S/M20-S |
S/M20-AG |
M20X1,5 |
26,0 |
6,0 |
150 |
|
S/M25-G |
S/M25-S |
S/M25-AG |
M25X1,5 |
32,0 |
6,0 |
75 |
|
S/M32-G |
S/M32-S |
S/M32-AG |
M32X1,5 |
41,0 |
7,0 |
40 |
|
S/M40-G |
S/M40-S |
S/M40-AG |
M40X1,5 |
50,0 |
7,0 |
20 |
|
S/M50-G |
S/M50-S |
S/M50-AG |
M50X1,5 |
60,0 |
8,0 |
12 |
|
S/M63-G |
S/M63-S |
S/M63-AG |
M63X1,5 |
75,0 |
8,0 |
8 |
PG THREAD
|
GREY CODE |
BLACK CODE |
LIGHT |
SIZE |
SW BODY (MM) |
H (MM) |
|
|
S/PG-01-G |
S/PG-01-S |
S/PG-01-AG |
PG-7 |
19,0 |
5,0 |
400 |
|
S/PG-02-G |
S/PG-02-S |
S/PG-02-AG |
PG-9 |
22,0 |
5,0 |
300 |
|
S/PG-03-G |
S/PG-03-S |
S/PG-03-AG |
PG-11 |
24,0 |
5,0 |
200 |
|
S/PG-04-G |
S/PG-04-S |
S/PG-04-AG |
PG-13,5 |
27,0 |
6,0 |
150 |
|
S/PG-05-G |
S/PG-05-S |
S/PG-05-AG |
PG-16 |
30,0 |
6,0 |
120 |
|
S/PG-06-G |
S/PG-06-S |
S/PG-06-AG |
PG-21 |
36,0 |
7,0 |
75 |
|
S/PG-07-G |
S/PG-07-S |
S/PG-07-AG |
PG-29 |
46,0 |
7,0 |
40 |
|
S/PG-08-G |
S/PG-08-S |
S/PG-08-AG |
PG-36 |
60,0 |
8,0 |
20 |
|
S/PG-09-G |
S/PG-09-S |
S/PG-09-AG |
PG-42 |
65,0 |
8,0 |
12 |
|
S/PG-10-G |
S/PG-10-S |
S/PG-10-AG |
PG-48 |
70,0 |
8,0 |
8 |
