Polyamide Blind Stop
Polyamide Blind Stop

Polyamide Blind Stop

Download PDF
Product group: Polyamide Blind Stop
Product features:
  • MATERIAL : POLYAMIDE 6
  • STANDARD : EN 62444
  • THREAD TYPE : METRIC EN 60423 , PG DIN 40430
  • PROTECTION CLASS : IP 68 / 5 BAR
  • OPERATING TEMPERATURE : -30°C /+100°C
  • COLOR : GREY (RAL 7001), BLACK (RAL 9005), LIGHT GREY (RAL 7035)
  • O-RING : NBR
  • CERTIFICATE : CE, ROHS

FEATURES

  • HIGH MECHANICAL STRENGTH
  • HALOGEN FREE
  • SULPHUR FREE
  • PHOSPHORUS FREE
  • UL 94 V2 FLAME RETARDANCY
  • EASY INSTALLATION
  • BEST GRADE MATERIAL

APPLICATIONS

WHERE TO NEED END ENTRIES



Product description:

METRİC THREAD

GREY CODE

BLACK CODE

LIGHT
GREY CODE

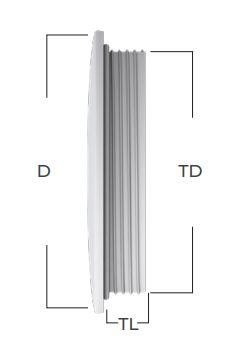

SIZE

D (MM)

TL (MM)

H (MM)

DK/M-01-G

DK/M-01-S

DK/M-01-AG

M16X1,5

19.5

6.5

9.5

200

DK/M-02-G

DK/M-02-S

DK/M-02-AG

M20X1,5

25.0

6.0

9.0

150

DK/M-03-G

DK/M-03-S

DK/M-03-AG

M25X1,5

30.0

10.0

14.0

75

DK/M-04-G

DK/M-04-S

DK/M-04-AG

M32X1,5

37.0

10.0

14.0

40

DK/M-05-G

DK/M-05-S

DK/M-05-AG

M40X1,5

46.0

10.0

14.5

20

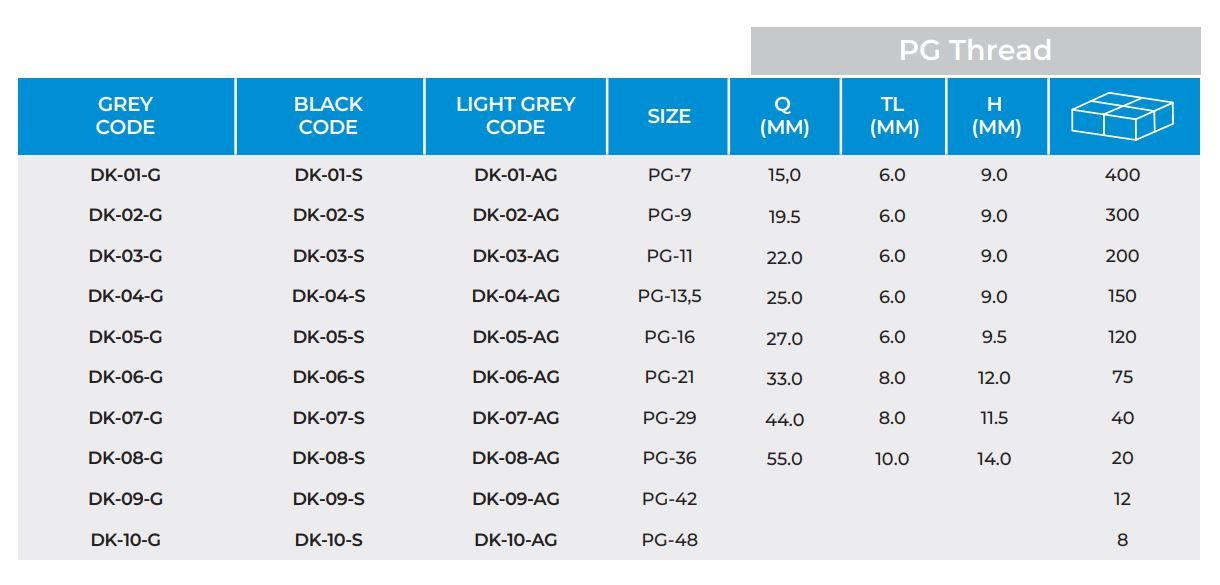

PG THREAD

GREY CODE

BLACK CODE

LIGHT
GREY CODE

SIZE

D (MM)

TL (MM)

H (MM)

DK/PG-01-G

DK/PG-01-S

DK/PG-01-AG

PG-7

15,0

6.0

9.0

400

DK/PG-02-G

DK/PG-02-S

DK/PG-02-AG

PG-9

19.5

6.0

9.0

300

DK/PG-03-G

DK/PG-03-S

DK/PG-03-AG

PG-11

22.0

6.0

9.0

200

DK/PG-04-G

DK/PG-04-S

DK/PG-04-AG

PG-13,5

25.0

6.0

9.0

150

DK/PG-05-G

DK/PG-05-S

DK/PG-05-AG

PG-16

27.0

6.0

9.5

120

DK/PG-06-G

DK/PG-06-S

DK/PG-06-AG

PG-21

33.0

8.0

12.0

75

DK/PG-07-G

DK/PG-07-S

DK/PG-07-AG

PG-29

44.0

8.0

11.5

40

DK/PG-08-G

DK/PG-08-S

DK/PG-08-AG

PG-36

55.0

10.0

14.0

20
