Nickel Plated Brass Ventilation Cable Gland

Nickel Plated Brass Ventilation Cable Gland

Nickel Plated Brass Ventilation Cable Gland

Product group: Nickel Plated Brass Ventilation Cable Gland

Product features:

MATERIAL : NICKEL PLATED BRASS
STANDARD : EN 62444
THREAD TYPE : METRIC EN 60423 , PG DIN 40430
PROTECTION CLASS : IP 68 / 5 BAR
OPERATING TEMPERATURE : -30°C /+100°C,-40°C /+150°C (SHORT TERM)
FLAMMABILITY CLASS : UL94V2
COLOR : SELF - COLOURED
SEAL : TPV, (CHLOROPRENE IS OPTIONAL)
INSERT : POLYAMIDE 6
O-RING : NBR
MEMBRANE : PTFE ( HYDROPHOBIC )
CERTIFICATE : CE, ROHS

FEATURES

GOOD CLAMBING RANGE
PERFECT VENTILATION PERFORMANCE
HALOGEN FREE
SULPHUR FREE
PHOSPHORUS FREE
UL 94 V2 FLAME RETARDANCY
HIGH MECHANICAL STRENGTH
EASY INSTALLATION
HIGH STRAIN RELIEF
BEST GRADE MATERIAL

APPLICATIONS

LIGHTING
CABINETS
MACHINE BUILDINGS
AUTOMATION SYSTEMS
MARINE , SHIPYARD

Product description:

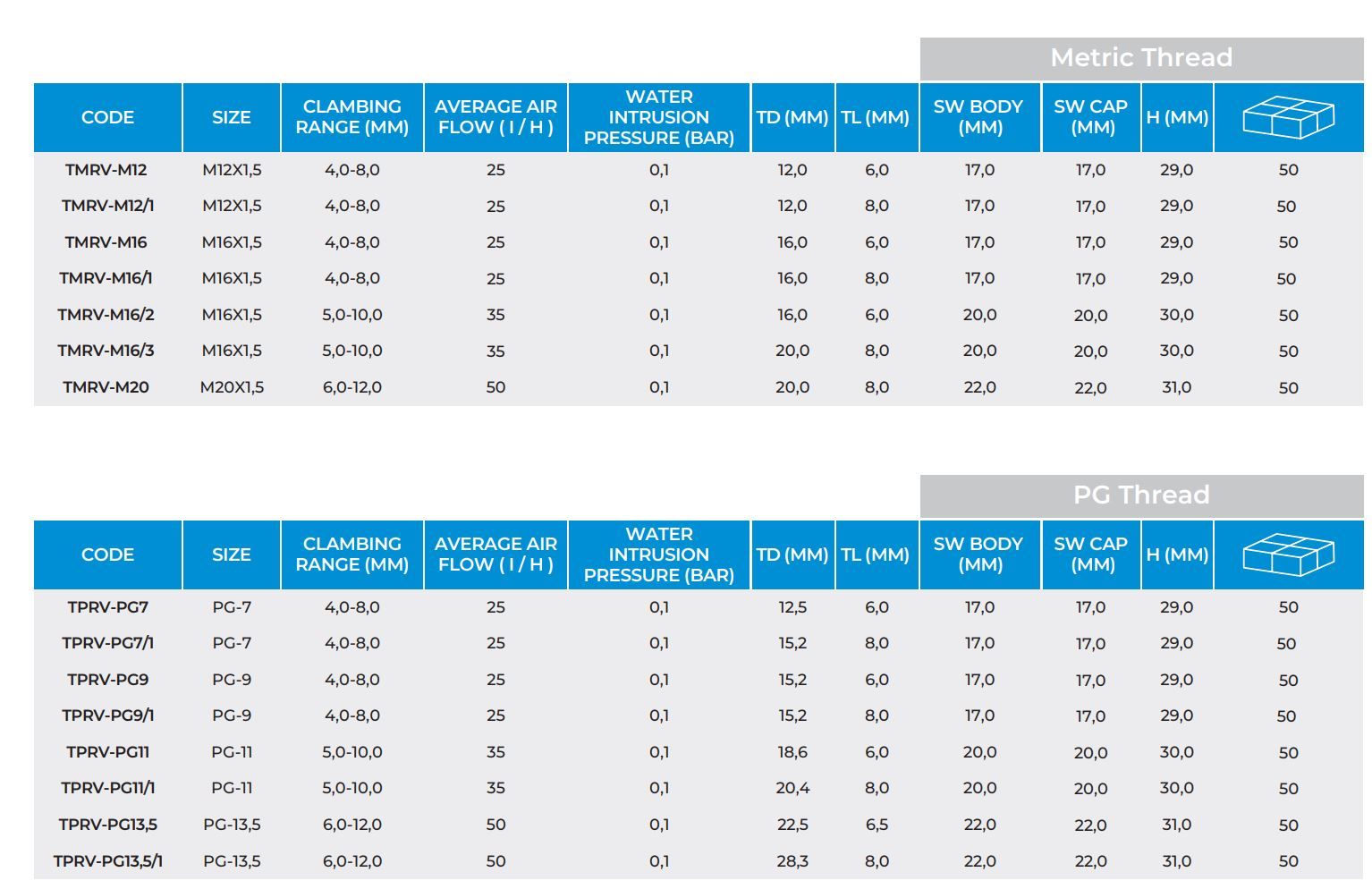

METRİC THREAD

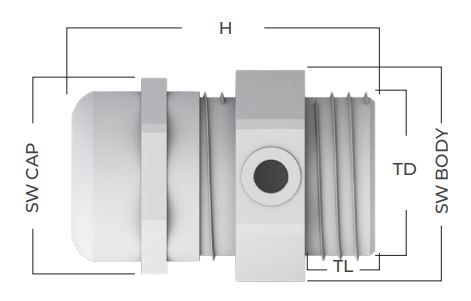

CODE	SIZE	CLAMBING RANGE (MM)	AVERAGE AIR FLOW ( I / H )	WATER INTRUSION PRESSURE (BAR)	TD (MM)	TL (MM)	SW BODY (MM)	SW CAP (MM)	H (MM)
TMRV-M12	M12X1,5	4,0-8,0	25	0,1	12,0	6,0	17,0	17,0	29,0	50
TMRV-M12/1	M12X1,5	4,0-8,0	25	0,1	12,0	8,0	17,0	17,0	29,0	50
TMRV-M16	M16X1,5	4,0-8,0	25	0,1	16,0	6,0	17,0	17,0	29,0	50
TMRV-M16/1	M16X1,5	4,0-8,0	25	0,1	16,0	8,0	17,0	17,0	29,0	50
TMRV-M16/2	M16X1,5	5,0-10,0	35	0,1	16,0	6,0	20,0	20,0	30,0	50
TMRV-M16/3	M16X1,5	5,0-10,0	35	0,1	20,0	8,0	20,0	20,0	30,0	50
TMRV-M20	M20X1,5	6,0-12,0	50	0,1	20,0	8,0	22,0	22,0	31,0	50

PG THREAD

CODE	SIZE	CLAMBING RANGE (MM)	AVERAGE AIR FLOW ( I / H )	WATER INTRUSION PRESSURE (BAR)	TD (MM)	TL (MM)	SW BODY (MM)	SW CAP (MM)	H (MM)
TPRV-PG7	PG-7	4,0-8,0	25	0,1	12,5	6,0	17,0	17,0	29,0	50
TPRV-PG7/1	PG-7	4,0-8,0	25	0,1	15,2	8,0	17,0	17,0	29,0	50
TPRV-PG9	PG-9	4,0-8,0	25	0,1	15,2	6,0	17,0	17,0	29,0	50
TPRV-PG9/1	PG-9	4,0-8,0	25	0,1	15,2	8,0	17,0	17,0	29,0	50
TPRV-PG11	PG-11	5,0-10,0	35	0,1	18,6	6,0	20,0	20,0	30,0	50
TPRV-PG11/1	PG-11	5,0-10,0	35	0,1	20,4	8,0	20,0	20,0	30,0	50
TPRV-PG13,5	PG-13,5	6,0-12,0	50	0,1	22,5	6,5	22,0	22,0	31,0	50
TPRV-PG13,5/1	PG-13,5	6,0-12,0	50	0,1	28,3	8,0	22,0	22,0	31,0	50
