FEATURES

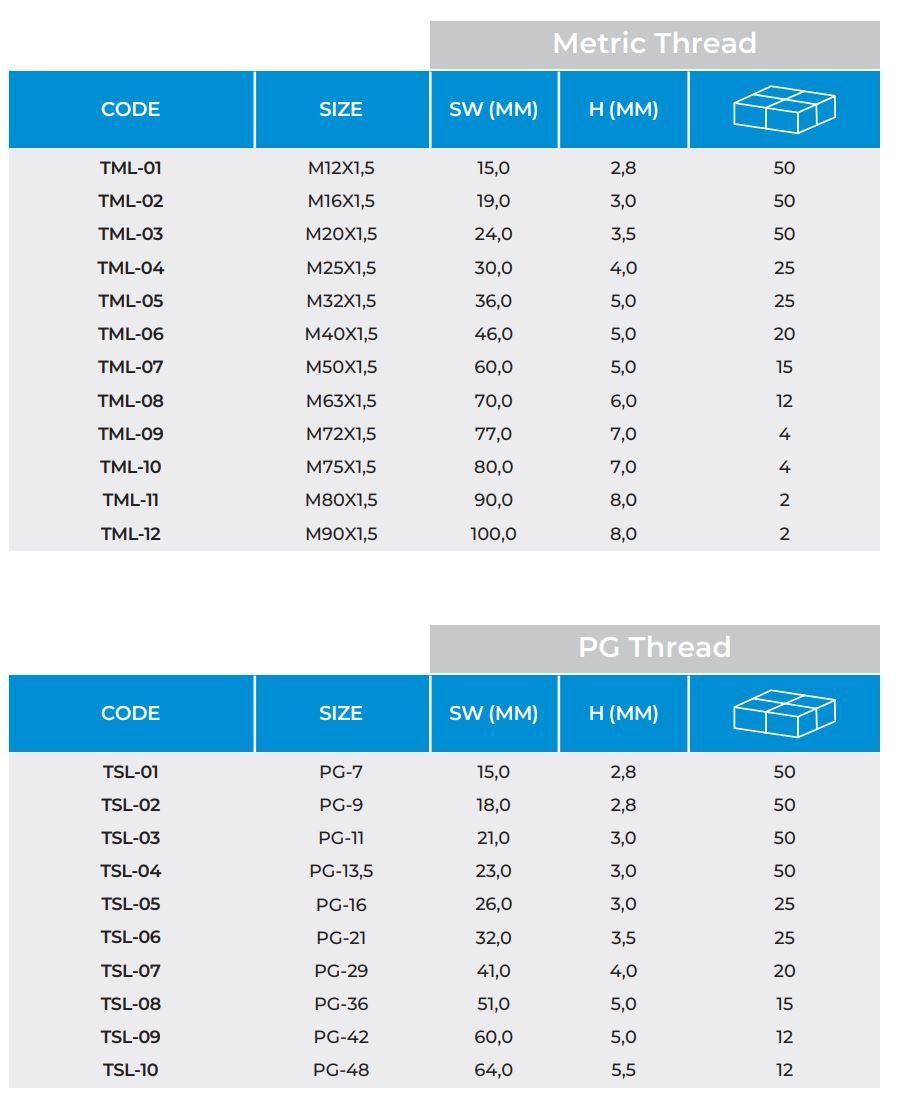

METRİC THREAD
|
CODE |
SIZE |

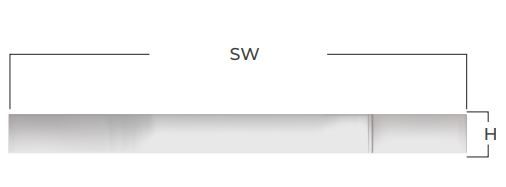

SW (MM) |
H (MM) |
|
|
TML-01 |
M12X1,5 |
15,0 |
2,8 |
50 |
|
TML-02 |
M16X1,5 |
19,0 |
3,0 |
50 |
|
TML-03 |
M20X1,5 |
24,0 |
3,5 |
50 |
|
TML-04 |
M25X1,5 |
30,0 |
4,0 |
25 |
|
TML-05 |
M32X1,5 |
36,0 |
5,0 |
25 |
|
TML-06 |
M40X1,5 |
46,0 |
5,0 |
20 |
|
TML-07 |
M50X1,5 |
60,0 |
5,0 |
15 |
|
TML-08 |
M63X1,5 |
70,0 |
6,0 |
12 |
|
TML-09 |
M72X1,5 |
77,0 |
7,0 |
4 |
|
TML-10 |
M75X1,5 |
80,0 |
7,0 |
4 |
|
TML-11 |
M80X1,5 |
90,0 |
8,0 |
2 |
|
TML-12 |
M90X1,5 |
100,0 |
8,0 |
2 |
PG THREAD
|
CODE |
SIZE |
SW (MM) |
H (MM) |
|
|
TSL-01 |
PG-7 |
15,0 |
2,8 |
50 |
|
TSL-02 |
PG-9 |
18,0 |
2,8 |
50 |
|
TSL-03 |
PG-11 |
21,0 |
3,0 |
50 |
|
TSL-04 |
PG-13,5 |
23,0 |
3,0 |
50 |
|
TSL-05 |
PG-16 |
26,0 |
3,0 |
25 |
|
TSL-06 |
PG-21 |
32,0 |
3,5 |
25 |
|
TSL-07 |
PG-29 |
41,0 |
4,0 |
20 |
|
TSL-08 |
PG-36 |
51,0 |
5,0 |
15 |
|
TSL-09 |
PG-42 |
60,0 |
5,0 |
12 |
|
TSL-10 |
PG-48 |
64,0 |
5,5 |
12 |
NPT THREAD
|
CODE |
SIZE |
SW (MM) |
H (MM) |
|
|
TNL-02 |
3/8" |
24,0 |
5,0 |
50 |
|
TNL-03 |
1/2" |
24,0 |
5,0 |
50 |
|
TNL-04 |
3/4" |
34,0 |
6,0 |
25 |
|
TNL-05 |
1" |
42,0 |
6,0 |
25 |
|
TNL-06 |
11/4" |
52,0 |
7,0 |
20 |
|
TNL-07 |
11/2" |
60,0 |
7,0 |
15 |
|
TNL-08 |
2" |
74,0 |
8,0 |
12 |
