Nickel Plated Blind Stop
Nickel Plated Blind Stop

Nickel Plated Blind Stop

Download PDF
Product group: Nickel Plated Blind Stop
Product features:
  • MATERIAL : NICKEL PLATED BRASS
  • STANDARD : EN 62444
  • THREAD TYPE : METRIC EN 60423 , PG DIN 40430
  • PROTECTION CLASS : IP 68 / 5 BAR
  • OPERATING TEMPERATURE : -30°C /+100°C
  • COLOR : SELF - COLOURED
  • O-RING : NBR
  • CERTIFICATE : CE, ROHS

FEATURES

  • HIGH MECHANICAL STRENGTH
  • EASY INSTALLATION
  • BEST GRADE MATERIAL

APPLICATIONS

WHERE TO NEED END ENTRIES

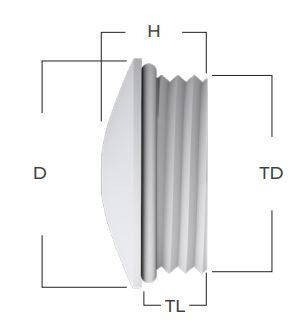

Product description:

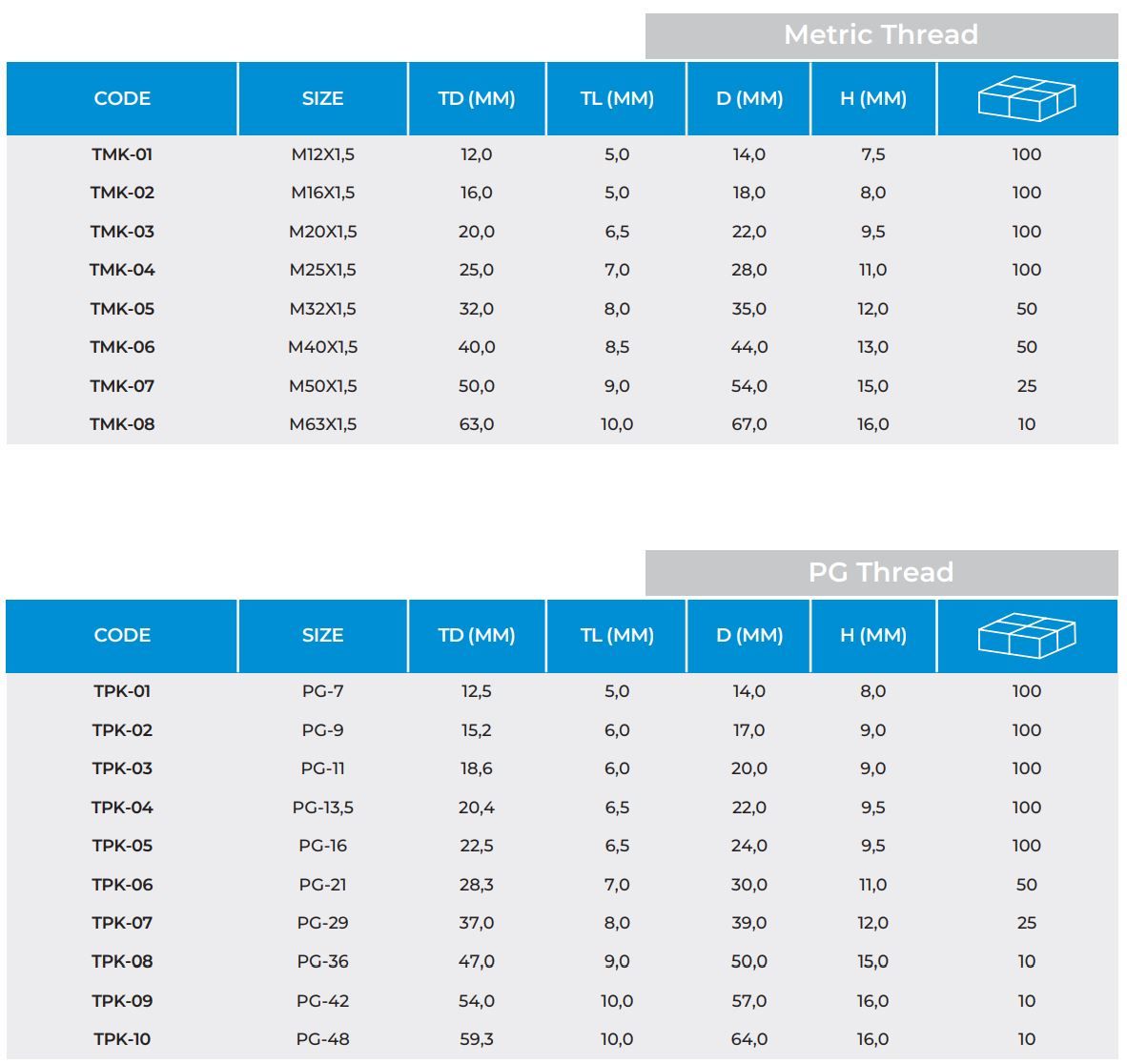

METRİC THREAD

CODE

SIZE

TD (MM)

TL (MM)

D (MM)

H (MM)

TMK-01

M12X1,5

12,0

5,0

14,0

7,5

100

TMK-02

M16X1,5

16,0

5,0

18,0

8,0

100

TMK-03

M20X1,5

20,0

6,5

22,0

9,5

100

TMK-04

M25X1,5

25,0

7,0

28,0

11,0

100

TMK-05

M32X1,5

32,0

8,0

35,0

12,0

50

TMK-06

M40X1,5

40,0

8,5

44,0

13,0

50

TMK-07

M50X1,5

50,0

9,0

54,0

15,0

25

TMK-08

M63X1,5

63,0

10,0

67,0

16,0

10



PG THREAD

CODE

SIZE

TD (MM)

TL (MM)

D (MM)

H (MM)

TPK-01

PG-7

12,5

5,0

14,0

8,0

100

TPK-02

PG-9

15,2

6,0

17,0

9,0

100

TPK-03

PG-11

18,6

6,0

20,0

9,0

100

TPK-04

PG-13,5

20,4

6,5

22,0

9,5

100

TPK-05

PG-16

22,5

6,5

24,0

9,5

100

TPK-06

PG-21

28,3

7,0

30,0

11,0

50

TPK-07

PG-29

37,0

8,0

39,0

12,0

25

TPK-08

PG-36

47,0

9,0

50,0

15,0

10

TPK-09

PG-42

54,0

10,0

57,0

16,0

10

TPK-10

PG-48

59,3

10,0

64,0

16,0

10
