Brass Standart Cable Gland PG Type

Brass Standart Cable Gland PG Type

Download PDF
Product group: Brass Standart Cable Gland PG Type
Product features:
  • MATERIAL : NICKEL PLATED BRASS
  • STANDARD : EN 62444
  • THREAD TYPE : PG DIN 40430
  • PROTECTION CLASS : IP 68 / 5 BAR
  • OPERATING TEMPERATURE : -30°C /+100°C,-40°C /+150°C (SHORT TERM)
  • FLAMMABILITY CLASS : UL94V2
  • COLOR : SELF - COLOURED
  • SEAL : TPV, (CHLOROPRENE IS OPTIONAL)
  • INSERT : POLYAMIDE 6
  • O-RING : NBR
  • CERTIFICATE : CE, ROHS

FEATURES

  • GOOD CLAMBING RANGE
  • HALOGEN FREE
  • SULPHUR FREE PHOSPHORUS FREE
  • UL 94 V2 FLAME RETARDANCY
  • HIGH MECHANICAL STRENGTH
  • EASY INSTALLATION
  • HIGH STRAIN RELIEF
  • BEST GRADE MATERIAL
  • GOOD CHEMICAL RESISTANT

APPLICATIONS

MACHINE BUILDINGS

AUTOMATION SYSTEMS SOLAR SYSTEMS

CONSTRUCTION

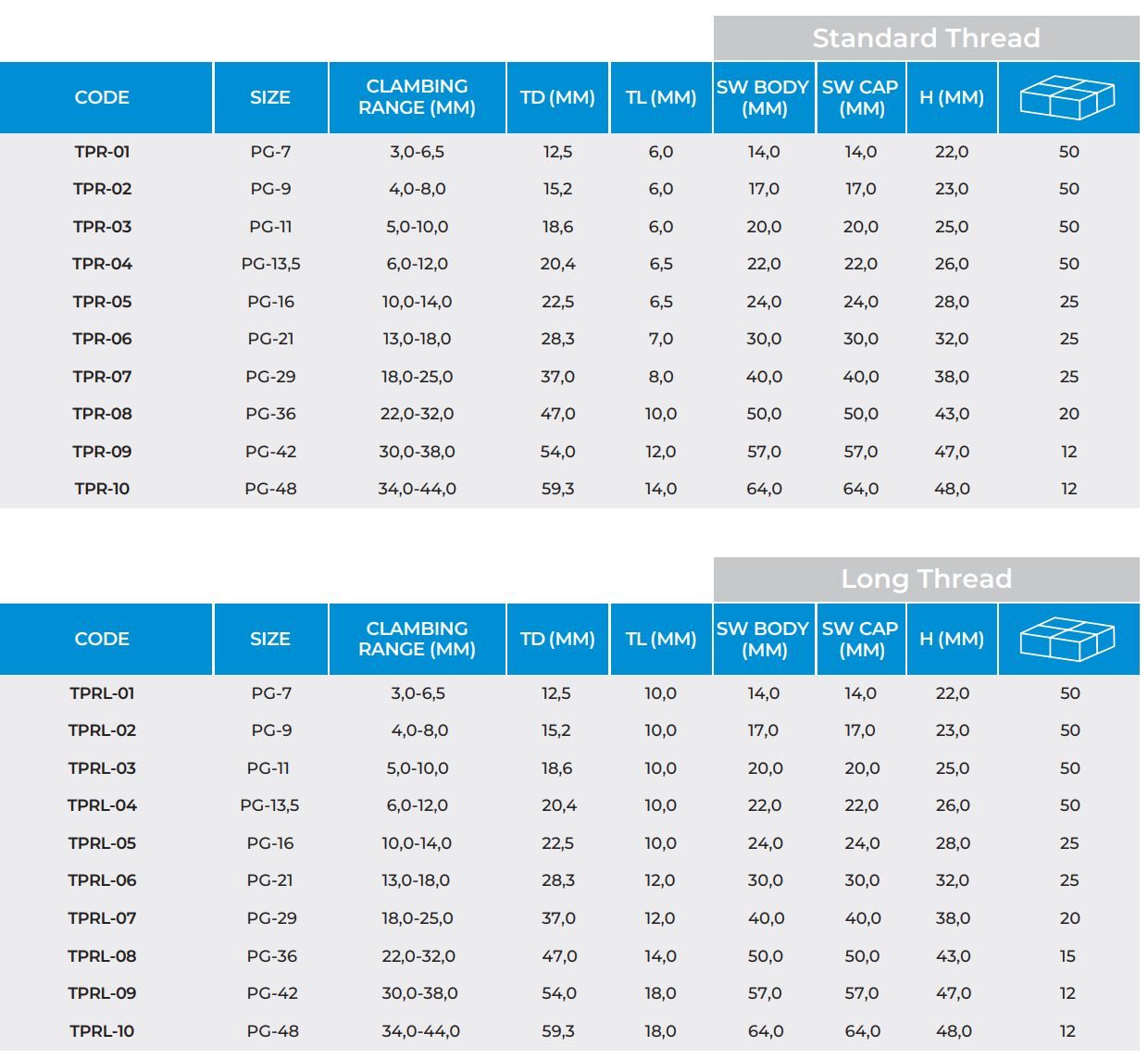

Product description:

STANDARD THREAD

CODE

SIZE

CLAMBING
RANGE (MM)

TD (MM)

TL (MM)

SW BODY (MM)

SW CAP (MM)

H (MM)

TPR-01

PG-7

3,0-6,5

12,5

6,0

14,0

14,0

22,0

50

TPR-02

PG-9

4,0-8,0

15,2

6,0

17,0

17,0

23,0

50

TPR-03

PG-11

5,0-10,0

18,6

6,0

20,0

20,0

25,0

50

TPR-04

PG-13,5

6,0-12,0

20,4

6,5

22,0

22,0

26,0

50

TPR-05

PG-16

10,0-14,0

22,5

6,5

24,0

24,0

28,0

25

TPR-06

PG-21

13,0-18,0

28,3

7,0

30,0

30,0

32,0

25

TPR-07

PG-29

18,0-25,0

37,0

8,0

40,0

40,0

38,0

25

TPR-08

PG-36

22,0-32,0

47,0

10,0

50,0

50,0

43,0

20

TPR-09

PG-42

30,0-38,0

54,0

12,0

57,0

57,0

47,0

12

TPR-10

PG-48

34,0-44,0

59,3

14,0

64,0

64,0

48,0

12



LONG THREAD

CODE

SIZE

CLAMBING
RANGE (MM)

TD (MM)

TL (MM)

SW BODY (MM)

SW CAP (MM)

H (MM)

TPRL-01

PG-7

3,0-6,5

12,5

10,0

14,0

14,0

22,0

50

TPRL-02

PG-9

4,0-8,0

15,2

10,0

17,0

17,0

23,0

50

TPRL-03

PG-11

5,0-10,0

18,6

10,0

20,0

20,0

25,0

50

TPRL-04

PG-13,5

6,0-12,0

20,4

10,0

22,0

22,0

26,0

50

TPRL-05

PG-16

10,0-14,0

22,5

10,0

24,0

24,0

28,0

25

TPRL-06

PG-21

13,0-18,0

28,3

12,0

30,0

30,0

32,0

25

TPRL-07

PG-29

18,0-25,0

37,0

12,0

40,0

40,0

38,0

20

TPRL-08

PG-36

22,0-32,0

47,0

14,0

50,0

50,0

43,0

15

TPRL-09

PG-42

30,0-38,0

54,0

18,0

57,0

57,0

47,0

12

TPRL-10

PG-48

34,0-44,0

59,3

18,0

64,0

64,0

48,0

12
