Brass Standart Cable Gland Metric Type

Brass Standart Cable Gland Metric Type

Brass Standart Cable Gland Metric Type

Product group: Brass Standart Cable Gland Metric Type

Product features:

MATERIAL : NICKEL PLATED BRASS
STANDARD : EN 62444
THREAD TYPE : METRIC EN 60423
PROTECTION CLASS : IP 68 / 5 BAR
OPERATING TEMPERATURE : -30°C /+100°C,-40°C /+150°C (SHORT TERM)
FLAMMABILITY CLASS : UL94V2
COLOR : SELF - COLOURED
SEAL : TPV, (CHLOROPRENE IS OPTIONAL)
CLOSING SEAL : TPV
INSERT : POLYAMIDE 6
O-RING : NBR
CERTIFICATE : CE, ROHS

FEATURES

GOOD CLAMBING RANGE
HALOGEN FREE
SULPHUR FREE PHOSPHORUS FREE
UL 94 V2 FLAME RETARDANCY
HIGH MECHANICAL STRENGTH
EASY INSTALLATION
HIGH STRAIN RELIEF
BEST GRADE MATERIAL
GOOD CHEMICAL RESISTANT

APPLICATIONS

MACHINE BUILDINGS
AUTOMATION SYSTEMS SOLAR SYSTEMS
CONSTRUCTION
CCTV
MARINE , SHIPYARD
ROBOT INDUSTRY
RENEWABLE ENERGY APPLICATIONS

Product description:

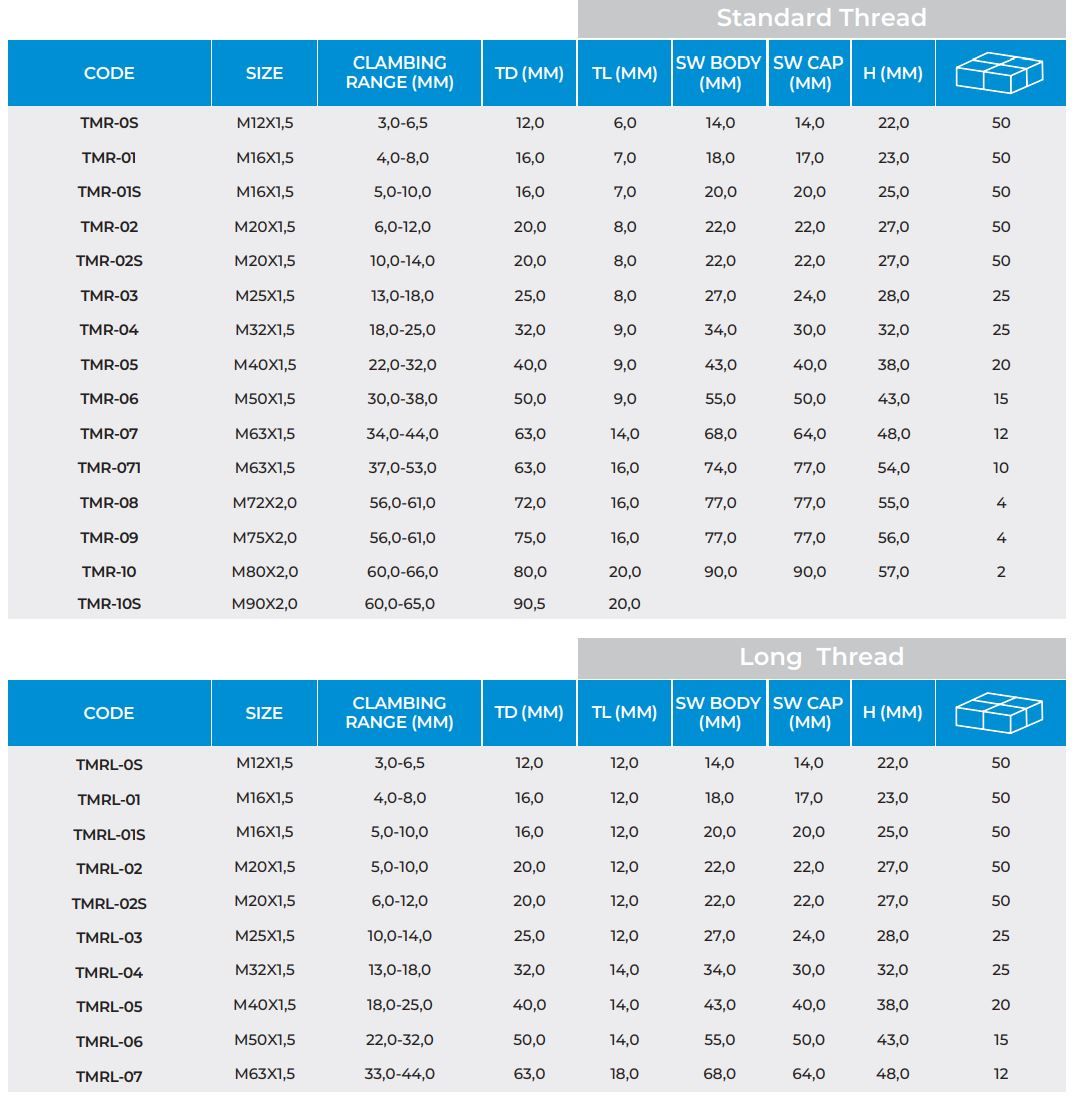

STANDARD THREAD

CODE	SIZE	CLAMBING RANGE (MM)	TD (MM)	TL (MM)	SW BODY (MM)	SW CAP (MM)	H (MM)
TMR-0S	M12X1,5	3,0-6,5	12,0	6,0	14,0	14,0	22,0	50
TMR-01	M16X1,5	4,0-8,0	16,0	7,0	18,0	17,0	23,0	50
TMR-01S	M16X1,5	5,0-10,0	16,0	7,0	20,0	20,0	25,0	50
TMR-02	M20X1,5	6,0-12,0	20,0	8,0	22,0	22,0	27,0	50
TMR-02S	M20X1,5	10,0-14,0	20,0	8,0	22,0	22,0	27,0	50
TMR-03	M25X1,5	13,0-18,0	25,0	8,0	27,0	24,0	28,0	25
TMR-04	M32X1,5	18,0-25,0	32,0	9,0	34,0	30,0	32,0	25
TMR-05	M40X1,5	22,0-32,0	40,0	9,0	43,0	40,0	38,0	20
TMR-06	M50X1,5	30,0-38,0	50,0	9,0	55,0	50,0	43,0	15
TMR-07	M63X1,5	34,0-44,0	63,0	14,0	68,0	64,0	48,0	12
TMR-071	M63X1,5	37,0-53,0	63,0	16,0	74,0	77,0	54,0	10
TMR-08	M72X2,0	56,0-61,0	72,0	16,0	77,0	77,0	55,0	4
TMR-09	M75X2,0	56,0-61,0	75,0	16,0	77,0	77,0	56,0	4
TMR-10	M80X2,0	60,0-66,0	80,0	20,0	90,0	90,0	57,0	2
TMR-10S	M90X2,0	60,0-65,0	90,5	20,0

LONG THREAD

CODE	SIZE	CLAMBING RANGE (MM)	TD (MM)	TL (MM)	SW BODY (MM)	SW CAP (MM)	H (MM)
TMRL-0S	M12X1,5	3,0-6,5	12,0	12,0	14,0	14,0	22,0	50
TMRL-01	M16X1,5	4,0-8,0	16,0	12,0	18,0	17,0	23,0	50
TMRL-01S	M16X1,5	5,0-10,0	16,0	12,0	20,0	20,0	25,0	50
TMRL-02	M20X1,5	5,0-10,0	20,0	12,0	22,0	22,0	27,0	50
TMRL-02S	M20X1,5	6,0-12,0	20,0	12,0	22,0	22,0	27,0	50
TMRL-03	M25X1,5	10,0-14,0	25,0	12,0	27,0	24,0	28,0	25
TMRL-04	M32X1,5	13,0-18,0	32,0	14,0	34,0	30,0	32,0	25
TMRL-05	M40X1,5	18,0-25,0	40,0	14,0	43,0	40,0	38,0	20
TMRL-06	M50X1,5	22,0-32,0	50,0	14,0	55,0	50,0	43,0	15
TMRL-07	M63X1,5	33,0-44,0	63,0	18,0	68,0	64,0	48,0	12
