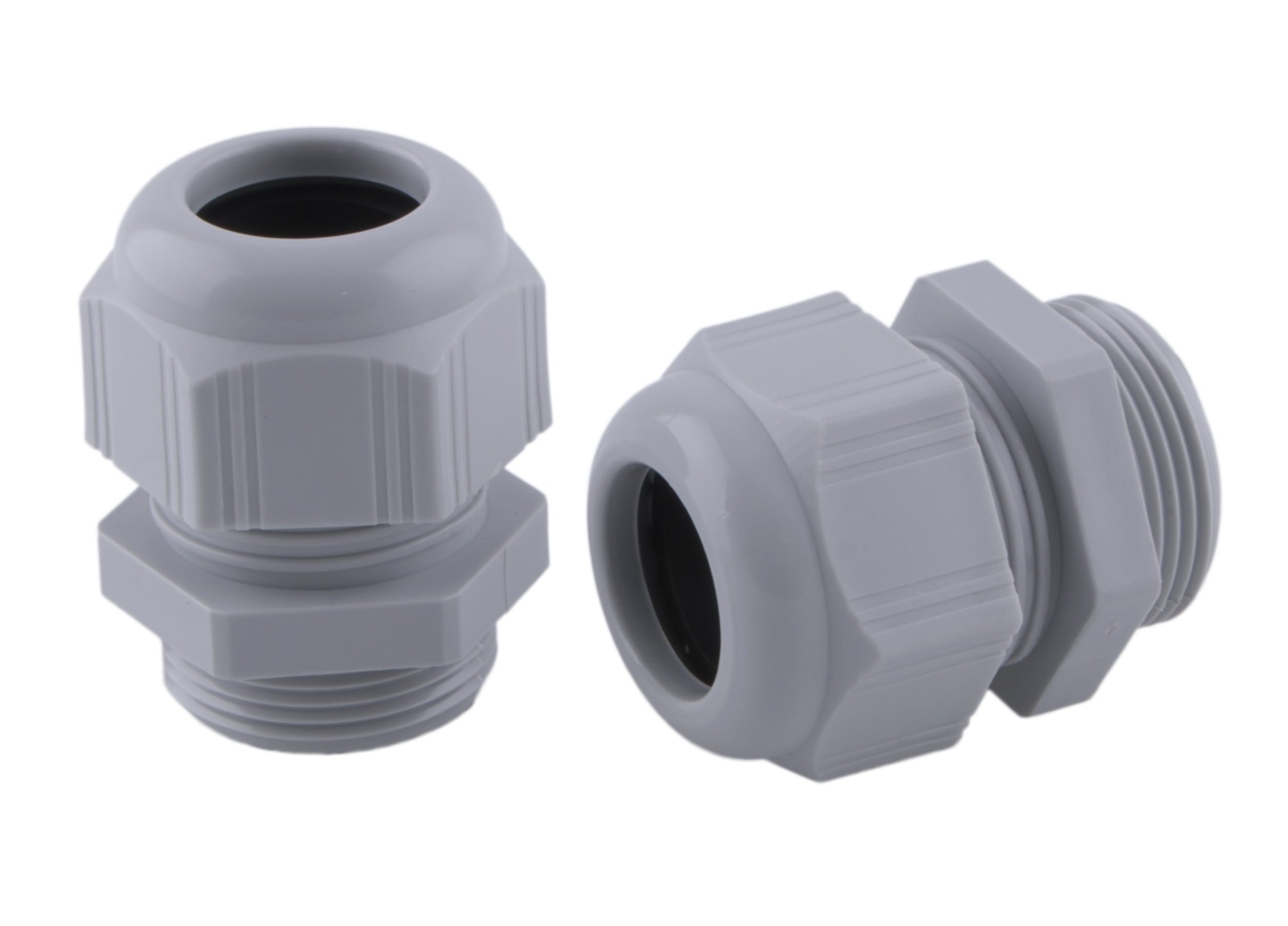

FEATURES GOOD CLAMBING RANGE | HALOGEN FREE | SULPHUR FREE PHOSPHORUS FREE | UL 94 V2 FLAME RETARDANCY HIGH MECHANICAL STRENGTH | EASY INSTALLATION HIGH STRAIN RELIEF | BEST GRADE MATERIAL
APPLICATIONS MACHINE BUILDINGS | AUTOMATION SYSTEMS AUTOMOTIVE ( WIRE HARNESS ) | SOLAR SYSTEMS CONSTRUCTION | CCTV | MARINE , SHIPYARD ROBOT INDUSTR
| Kod Code |
PG Ölçü PG Size |
TD (mm) |
TL (mm) |
SW (mm) |
Max. H (mm) |
D (mm) |
Kablo Çapı Cable Diameter Min-Max (mm) |
Paket Miktarı (ad.) Quantity (pcs.) |
| TPO-01 | PG-7 | 13,0 | 8,0 | 15,0 | 22,0 | 17,1 | 3,0 - 6,5 | 100 |
| TPO-02 | PG-9 | 16,0 | 8,0 | 19,0 | 25,0 | 21,6 | 4,0 - 8,0 | 50 |
| TPO-03 | PG-11 | 19,0 | 8,0 | 22,0 | 28,0 | 25,0 | 5,0 - 10,0 | 50 |
| TPO-04 | PG-13,5 | 21,0 | 9,0 | 24,0 | 29,0 | 27,8 | 6,0 - 12,0 | 50 |
| TPO-05 | PG-16 | 23,0 | 10,0 | 27,0 | 31,0 | 30,8 | 10,0 - 14,0 | 50 |
| TPO-06 | PG-21 | 29,0 | 11,0 | 33,0 | 35,0 | 37,8 | 13,0 - 18,0 | 25 |
| TPO-07 | PG-29 | 37,0 | 11,0 | 42,0 | 40,0 | 48,0 | 18,0 - 25,0 | 20 |
| TPO-08 | PG-36 | 47,0 | 13,0 | 53,0 | 49,0 | 60,0 | 22,0 - 32,0 | 10 |
| TPO-09 | PG-42 | 54,0 | 13,0 | 60,0 | 49,0 | 67,7 | 30,0 - 38,0 | 10 |
| TPO-10 | PG-48 | 59,0 | 14,0 | 65,0 | 49,0 | 72,2 | 34,0 - 44,0 | 10 |
| Kod Code |
PG Ölçü PG Size |
TD (mm) |
TL (mm) |
SW (mm) |
Max. H (mm) |
D (mm) |
Kablo Çapı Cable Diameter Min-Max (mm) |
Paket Miktarı (ad.) Quantity (pcs.) |
| TPO-0S | M12x1,5 | 12,0 | 8,0 | 15,0 | 22,0 | 17,1 | 3,0 - 6,5 | 100 |
| TPO-01 | M16x1,5 | 16,0 | 10,0 | 22,0 | 28,0 | 25,0 | 5,0 - 10,0 | 50 |
| TPO-02 | M20x1,5 | 20,0 | 10,0 | 24,0 | 29,0 | 27,8 | 6,0 - 12,0 | 50 |
| TPO-05 | M25x1,5 | 25,0 | 10,0 | 33,0 | 35,0 | 37,8 | 13,0 - 18,0 | 25 |
| TPO-07 | M32x1,5 | 32,0 | 18,0 | 42,0 | 40,0 | 48,0 | 18,0 - 25,0 | 20 |
| TPO-08 | M40x1,5 | 40,0 | 18,0 | 53,0 | 49,0 | 60,0 | 22,0 - 32,0 | 10 |
| TPO-09 | M50x1,5 | 50,0 | 18,0 | 60,0 | 49,0 | 67,7 | 30,0 - 38,0 | 10 |
| TPO-10 | M63x1,5 | 63,0 | 18,0 | 65,0 | 49,0 | 72,2 | 33,0 - 44,0 | 10 |
| Kod Code |
PG Ölçü PG Size |
TD (mm) |
TL (mm) |
SW (mm) |
Max. H (mm) |
D (mm) |
Kablo Çapı Cable Diameter Min-Max (mm) |
Paket Miktarı (ad.) Quantity (pcs.) |
| TNO-01 | NPT3/8 | 17,0 | 15,0 | 22,0 | 28,0 | 25,0 | 0,197 - 0,394 | 50 |
| TNO-02 | NPT1/2 | 21,0 | 15,0 | 24,0 | 29,0 | 29,0 | 0,236 - 0,472 | 50 |
| TNO-03 | NPT3/4 | 26,0 | 15,0 | 33,0 | 35,0 | 35,0 | 0,511 - 0,709 | 25 |
| TNO-04 | NPT1 | 33,0 | 18,0 | 42,0 | 40,0 | 40,0 | 0,709 - 0,984 | 20 |
